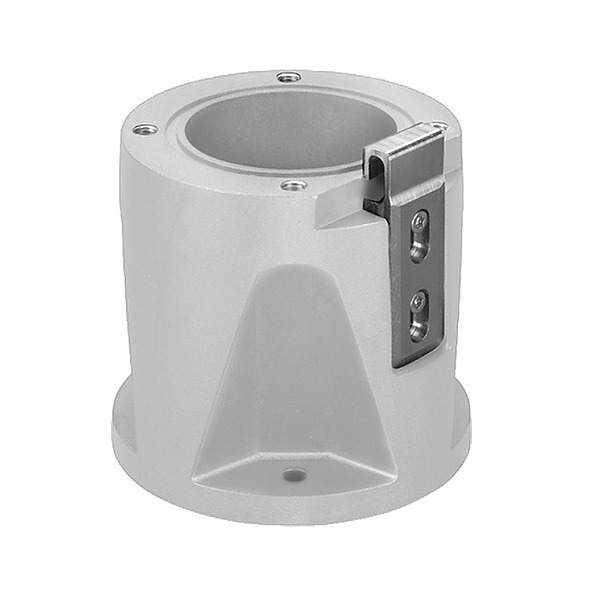

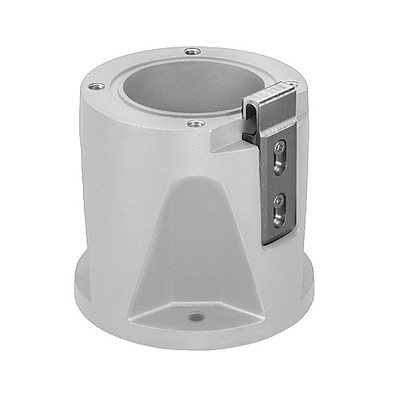

DCA Mount for MIC Camera

The MIC Deep Conduit Adapter (MIC-DCA) is designed to allow a weatherproof conduit or cable gland to be fitted to protect the signal cables. Manufactured from either solid aluminum or stainless steel, the MIC-DCA has two M25 holes, one in the base and one in the side.

An O-ring seals the camera to mount interface to an ingress rating of IP68.

Supplied hardware includes:

• Four (4) M8 x 20 stainless steel hex bolts
• Four (4) M8 stainless steel plain washers
• One (1)O-ring, 80 mm x 3 mm
• One (1) end cap/blanking plug, M25 x 1.5, with O-ring
