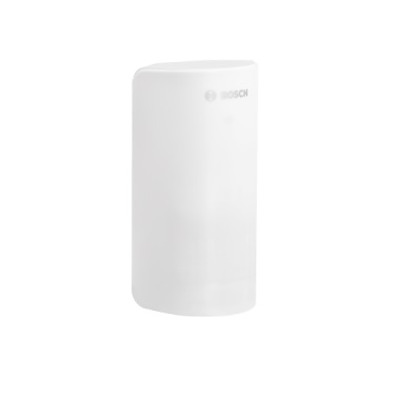

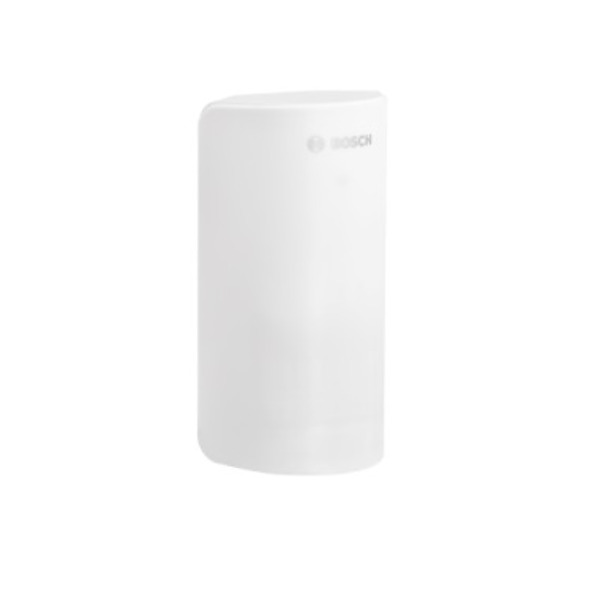

ZIGBEE Wireless PIR Detector View larger

ZIGBEE Wireless PIR Detector


New product

ZIGBEE Wireless PIR Detector

More details

The RADION PIR ZB Wireless Motion Detector uses two Fresnel lenses designed to produce sharplyfocused images throughout the field of view providing superior detection of intruders. The main lens provides a high density (77 zone) 7 layer pattern, and the selectable lookdown lens provides an additional three lookdown zones.

Easy installation and flexible mounting height provides state of the art detection while minimizing installation time and complexity. Pet Friendly intelligence generates alarm signals for human intruders without generating false alarm signals from pets.


  • Passive Infrared Detection (PIR) with First Step
  • Processing for superior catch performance and best in class false alarm immunity
  • Pet Friendly – resists false alarms from animals up to 20 kg (45 lbs)
  • Flexible mounting height, no adjustments – reduces installation time and false alarms, improves catch performance
  • Self locking enclosure with bi-axial bubble level for faster installation
  • Up to 7 years battery life with 1 battery, or up to 10 years with optional second battery
  • Colour White
  • Dimensions (H x W x D) 108 x 60 x 42 mm
  • Frequency Range ZigBee: 2.4 GHz
  • Operating Temperature -10°C to +55°C
  • Warranty 3 Years
