DSRF 2 Channel Relay Output Receiver View larger

DSRF 2 Channel Relay Output Receiver

BOSCH HCR-BU2

New product

DSRF 2 Channel Relay Output Receiver

More details

Lockdown Security Solutions Mandurah 08 9584 2926 www.lockdownsecurity.com.au
RAC Security Services Perth 1300 360 504 www.rac.com.au/home-life/home-security
Black Cat Security East Cannington 0411 722 422 www.blackcatsecurity.com.au
Incite Security Geraldton 9964 7870 www.incitesecurity.com.au

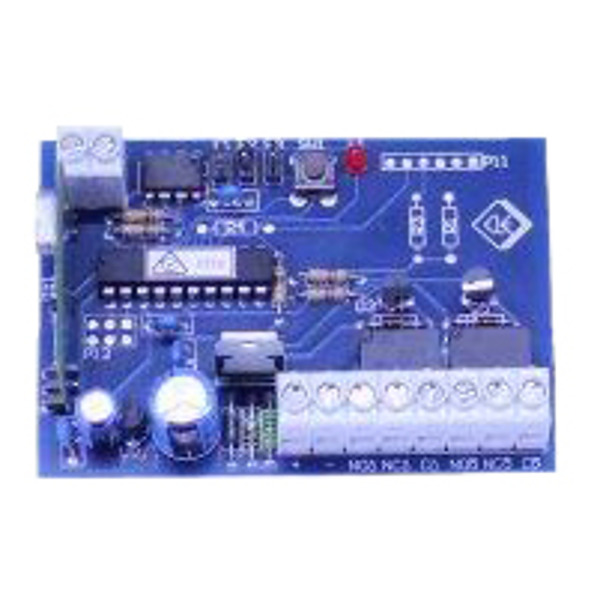

The HCR-BU2 receiver is designed to provide relay outputs which can be operated from any of the DSRF transmission type keyfobs supplied by Bosch Security Systems. These keyfobs are The RF3334, RF-HCT4UL-FOB and the Radion Keyfob FB.

This receiver removes the need to wire from the control panel to an external device such as a garage door or gate to operate the device. The HCR-BU2 can be powered from 12 to 24V AC or DC. The product is supplied as a PCB only with no housing. This allows installation into gate motor housing etc.

The two relays are activated by the ‘alarm’ and ‘light’ buttons on the RF3334 and RF-HCT4UL-FOB keyfobs. On the Radion keyfob the ‘Dot’ and ‘Double Dot’ buttons are used.

Features

  • Removes the need to wire from the control panel
  • Provides relay outputs which can be operated from the RF3334, RF-HCT4ULFOB and the Radion Keyfob FB
