Radion Wireless Receiver for Solution 3000 View larger

Radion Wireless Receiver for Solution 3000

BOSCH B810

New product

Radion Wireless Receiver for Solution 3000

More details

Get Smart Security Bickley 0419 902 447 www.getsmartsecurity.com.au
RAC Security Services Perth 1300 360 504 www.rac.com.au/home-life/home-security
Access 1 Security Systems Malaga 1300 855 781 www.access1security.com.au
Prestige Alarms Balcatta 9240 1515 www.prestigealarms.com.au
Coast to Coast Alarms Baldivis 1300 667 728 www.ctcas.com.au
Smart Security Company East Vic Park 08 9470 2887 www.smartsecurity.com.au

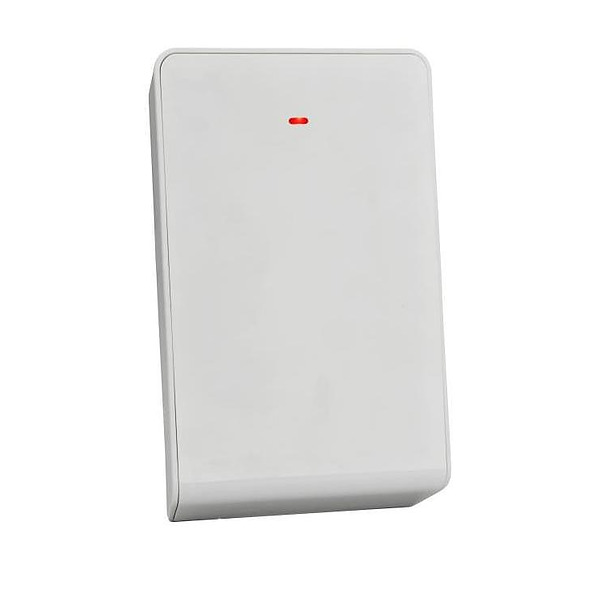

The B810 is a wireless receiver that connects RADION wireless peripherals such as the motion and specialty detectors, keyfobs, panic buttons, door window contacts, repeaters, and more, to supported Bosch control panels using the SDI2 Bus connection.

The receiver supports RF communication at 433.42 MHz This frequency features improved penetration, reflection, and refraction of signal for superior range, and reliability. The receiver also features dual antennas to achieve spatial and polar diversity to further improve RF communication reliability. Enclosed within the receiver housing for higher security, the receiver is equipped with tamper protection, and detects and reports radio frequency interferences.

The receiver supports supervision of wireless points (504), key fobs (1000), and repeaters (8) and can be easily accessed and configured for a compatible control panel using the address switch on the back of the receiver housing.

The receiver address switch provides a single digit setting for the receiver’s address, allowing for ease of installation.

The B810 is compatible with the Bosch 3000 & G Series Panels only.

Features

  • Dual internal antennas provide spatial and polar RF signal reception for high reliability
  • Cover and wall tamper protection
  • Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation
  • Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8)
  • External status LEDs
  • Compatible with 3000 & G Series Panels
  • Colour White
  • Dimensions (H x W x D) 209.6 x 139.7 x 31.8 mm
  • Frequency 433.42 MHz
  • Operating Temperature -10C to +55C
  • Voltage 12 VDC
  • Warranty 3 Years
