Plug On Zone Expander

Product Code: BOSCH CM707B

Condition: New product

Installers

Armcor	Welshpool	9472 8180	www.armcorsecurity.com.au
Smart Security Company	East Vic Park	08 9470 2887	www.smartsecurity.com.au
Blue Force	Tuart Hill	1300 731 716	www.blueforce.com.au
Benchmark Pneumatic and Security	Booragoon	6143 2555	www.benchmarksystems.com.au
Access 1 Security Systems	Malaga	1300 855 781	www.access1security.com.au
Receptive Security	Kalgoorlie	08 9093 1555	receptivesecurity.com.au

More info
Specifications
Download

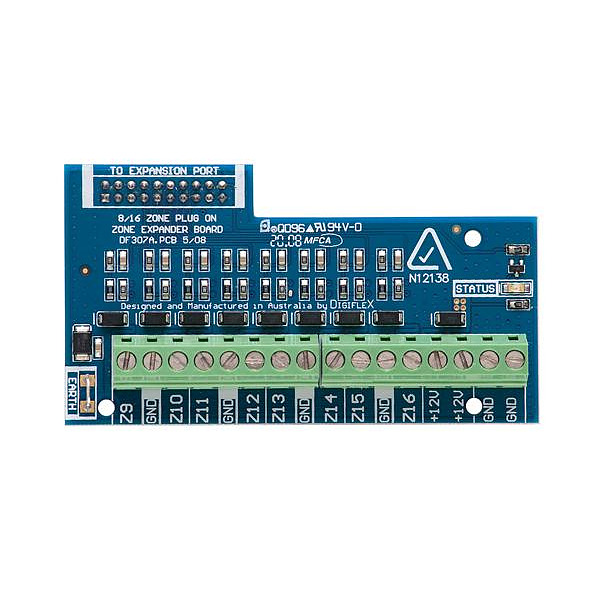

The CM707B Plug On Zone Expander is designed to complement the CM705B Universal Zone Expander. It can be added via the expansion port on the CM705B Universal Expander to provide an additional 8 hard wired zone inputs, bringing the CM705B to 16 hard wired zone inputs for Alarm + Tamper, 4 state monitoring or Single EOL configurations.

The CM707B Plug On Zone Expander is supplied with both 3K3 and 6K8 EOL resistors and 3 plastic PCB standoffs to mount the module onto the CM705B Universal Expander. You should fit the standoffs to the expander first and then connect the CM705B module. The Status LEF flashes to indicate the expander is communicating with the panel. If the LED is ON steady then the module is not communicating with the panel.

The CM707B Plug One Zone Expander earthing point connects to a communications earth for maximum lightning protection.
