Thermal Rate Of Rise & Fixed Temp Heat Sensor View larger

Thermal Rate Of Rise & Fixed Temp Heat Sensor


New product

Thermal Rate Of Rise & Fixed Temp Heat Sensor

More details

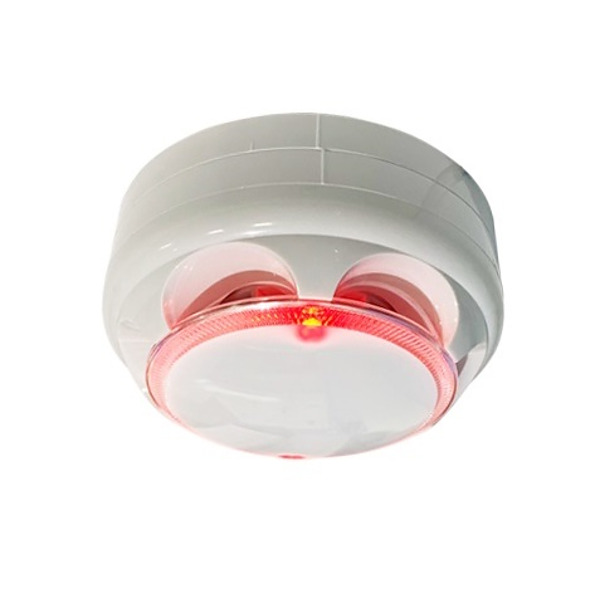

The Ultra Detection TS701 heat sensor provides excellent performance and high reliability in an attractive low profile body.

The TS701 uses a thermistor (thermally sensitive resistor) to sense the rapid change in air temperature that can only be the result of a fire. It provides both fixed temperature and rate of rise detection and is suitable for use in homes, hotels, offices and insulated storage facilities.

It is not triggered by dust or other fine particles in the air and is therefore suitable for harsh environments like warehouses and kitchens. It offers excellent resistance to electromagnetic interference to help reduce false alarms.


  • Thermal Rate of Rise detection
  • 57°C (135°F) fixed
  • Bi-colour LED indication ring
  • N/O and N/C contacts
  • 10-32V DC operation


  • Colour White
  • Dimensions (H x W x D) 52 x 100mm
  • Operating Temperature 0°C ~ +55°C
  • Voltage 10-32V DC
  • Warranty 1 Year
