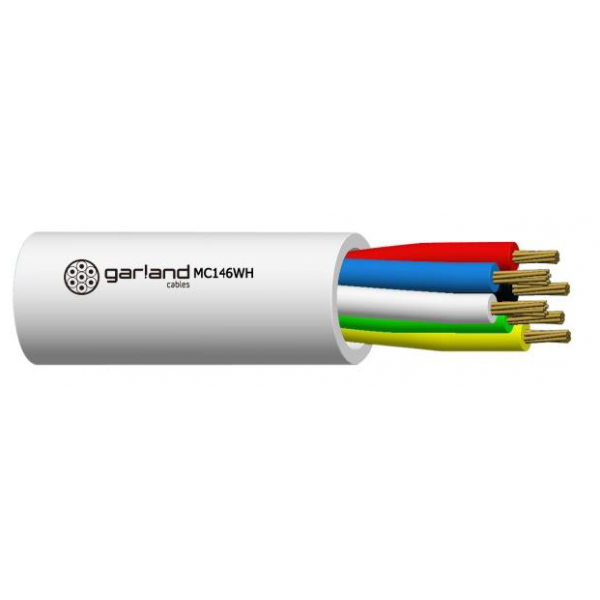

MADMC146WH250BW Garland Security Cable 6 Core 21AWG Unscreened PVC White - 250m

The MADMC146WH250BW is a high-quality 6 core alarm and security cable designed for interconnecting wiring in intruder alarm systems and other extra low voltage control and intercom circuits. Measuring 6.1 mm nominal overall diameter, it features stranded 21AWG PACW conductors (14 × 0.20 mm) with V-75 PVC insulation and a durable 4V-75 PVC outer sheath to ensure flexible installation, easy stripping, and long service life.

Ideal for fixed low-voltage runs in commercial, residential, and light industrial sites, it complies with AS/CA S-008, BS4737-3.30, and AS 1049 and offers an ELV rating, -15°C to 70°C operating range, 160 N max recommended pulling tension, and a 60 mm minimum bend radius, making it suitable for protected indoor environments where mains-rated cable is not required.

Key Features

  • 6 core 21AWG 14 × 0.20 mm stranded PACW for reliable alarm and control signalling
  • V-75 PVC insulation and 4V-75 PVC sheath for durability and easy termination
  • Distinct core colours white, blue, red, black, yellow, green for quick identification
  • Complies with AS/CA S-008, BS4737-3.30, AS 1049; ELV rated
  • Supplied on a 250 m white reel for efficient large-scale installs
  • COLOR WHITE
  • PRODUCT TYPE SECURITY CABLE
