> >>HIKVISION DS-KD8003Y-IME2 2-WIRE MODULAR IP VIDEO DOOR STATION 2MP FISHEYE IR IP65
HIKVISION DS-KD8003Y-IME2 2-WIRE Y-SERIES DOOR STATION 2MP IR 3M IP65 1 BUTTON BLACK View larger

HIKVISION

HIKVISION DS-KD8003Y-IME2 2-WIRE MODULAR IP VIDEO DOOR STATION 2MP FISHEYE IR IP65

HIKDS-KD8003Y-IME2

DS-KD8003Y-IME2 305303027

New product

HIKVISION DS-KD8003Y-IME2 2-WIRE Y-SERIES DOOR STATION 2MP IR 3M IP65 1 BUTTON BLACK

More details

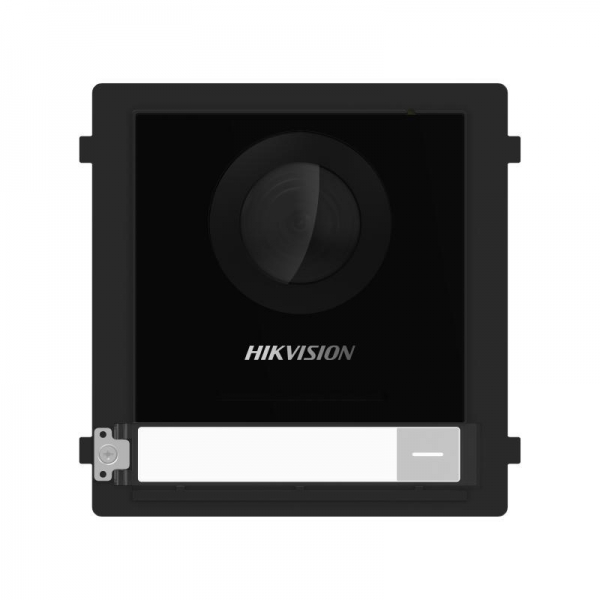

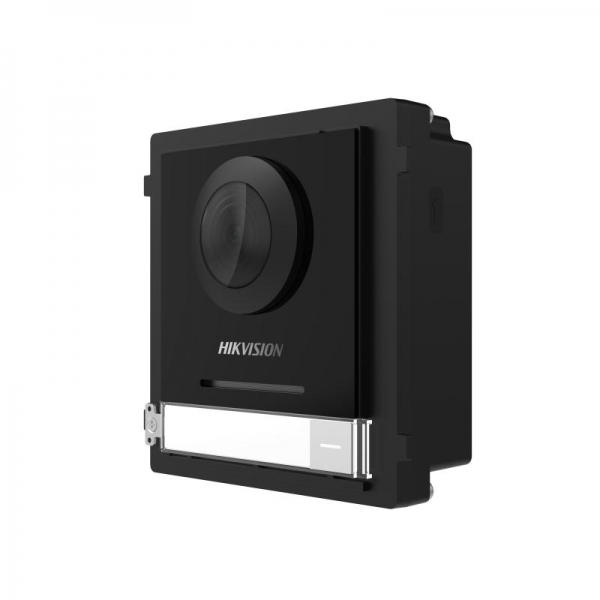

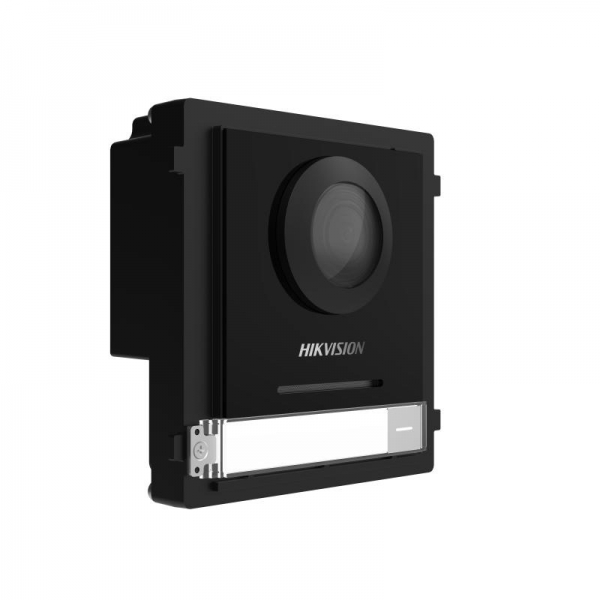

DS-KD8003Y-IME2 2-Wire Modular Door Station Main Unit

The DS-KD8003Y-IME2 is a 2-wire main unit for a KD8 series modular door station, combining a 2 MP fisheye camera, IR supplement up to 3 m, built-in microphone, loudspeaker and one physical call button in an outdoor door-entry module. It supports WDR, H.264, H.265 and MJPEG video compression, two-lock relay control and web-based remote configuration for intercom and access control installations.

Designed for apartment, office and construction-site entrances, the unit can be extended with Hikvision sub modules and installed using surface or flush mounting arrangements. Its IP65 protective level, -40 °C to 60 °C operating range, and KAD704Y or KAD706Y series distributor power supply make it a practical core module for two-wire doorway systems that need outdoor suitability and straightforward deployment.

Key Features

  • Forms the central module for a two-wire door station, supporting intercom and access control requirements in one doorway device
  • Helps capture visitor detail with a 2 MP fisheye camera, WDR support and IR illumination for low-light entry areas
  • Simplifies lock wiring by providing two-lock control and direct 12 V, 500 mA output for one electronic lock
  • Supports exposed entrance installation with IP65 protection and a wide -40 °C to 60 °C working temperature range
  • Offers flexible deployment through remote web configuration and surface or flush mounting options
  • COLOR BLACK
  • PRODUCT TYPE 1 BUTTON AUDIO/VIDEO DOOR STATION
