DIGITECH AC1785 4K HDMI CAT6 EXTENDER KIT IR EXTENDER HDMI LOOP OUT 70M
ECTAC1785
AC1785
New product

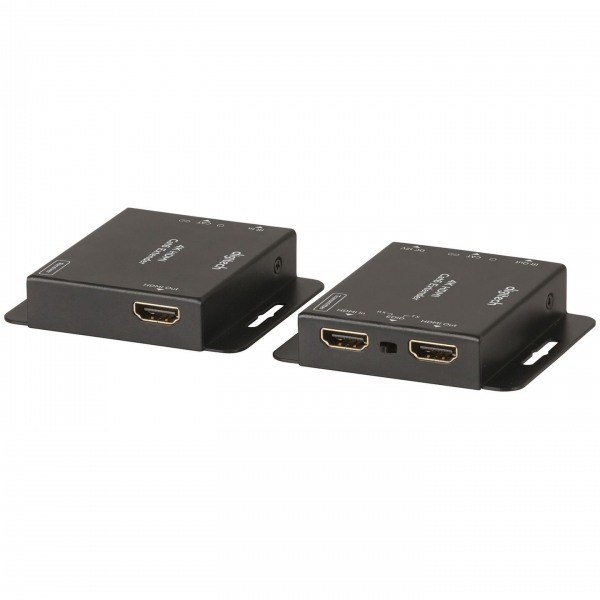

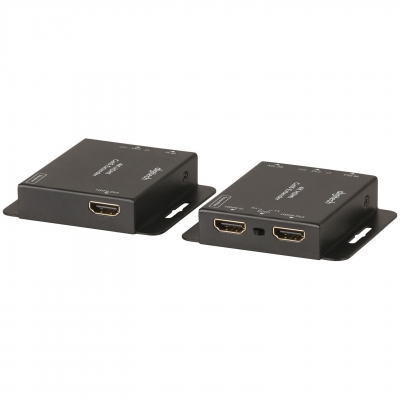

DIGITECH AC1785 4K HDMI Cat6 Extender Kit - IR Loop Out 70m
The DIGITECH AC1785 is a high-quality 4K HDMI over Cat6 extender kit designed for sending HDMI video and audio over long distances in home theatre, AV distribution, and commercial display installations. Measuring 79.5x69x16.5mm per unit, it features HDMI 1.4b and HDCP 1.4 compliance with EDID management, HDMI pass through loop out, and bi-directional IR to ensure stable handshake performance, clean signal delivery, and convenient remote control at the display end.
Ideal for extending PayTV, Blu-ray, media players, and set top boxes to UHDTVs and projectors, it supports up to 70m transmission at 1080p 60Hz or up to 40m at 4K 30Hz over a single Cat6 cable not included, while carrying advanced audio formats including Dolby TrueHD and DTS-HD Master Audio for a full fidelity AV experience, making it suitable for boardrooms, classrooms, digital signage, and residential AV fit outs.
Key Features
- Extends HDMI over one Cat6 cable up to 70m at 1080p 60Hz or 40m at 4K 30Hz
- HDMI 1.4b HDCP 1.4 and DVI 1.0 compatible with 10.2Gbps video bandwidth and 24-bit colour depth
- HDMI loop out pass through on transmitter for local display monitoring
- EDID dip switch for reliable source to display handshake and seamless integration
- IR extender included with IR emitter and receiver plus transmitter receiver and 12V power adaptor for a complete kit
- COLOR BLACK
- PRODUCT TYPE HDMI EXTENDER
