SAFT LS14250 1/2 AA 3.6VDC 1.2AH LITHIUM-THIONYL CHLORIDE 35MA -60~+85° NON-RECHARGEABLE FLAT CONTACT
BATLS14250
LS14250
New product

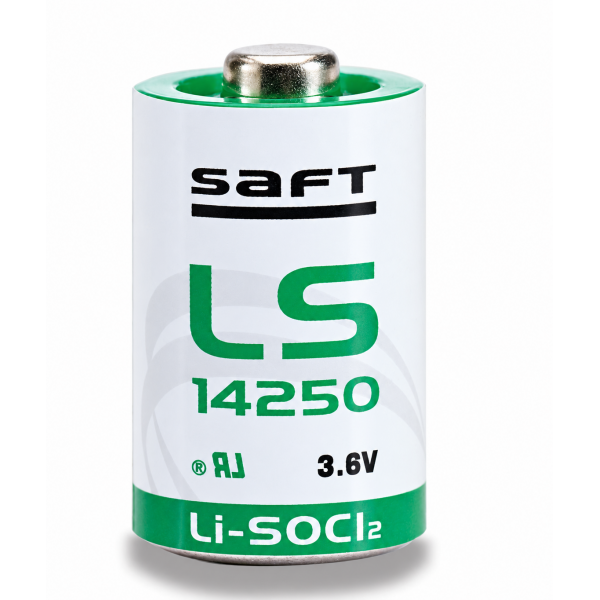

LS14250 Saft 1/2 AA Lithium Thionyl Chloride Battery - 3.6 V 1.2 Ah Flat Contact
Saft LS14250 is a non-rechargeable 1/2 AA lithium-thionyl chloride bobbin cell with flat contacts. It has a nominal voltage of 3.6 V, a nominal capacity of 1.20 Ah and nominal energy of 4.32 Wh.
The cell has a maximum diameter of 14.55 mm, a maximum height of 25.15 mm and a typical weight of 8.9 g. Its maximum recommended continuous current is 35 mA, with an operating temperature range of -60 to 85 °C.
Key Features
- Open-circuit voltage of 3.67 V at 20 °C
- Typical pulse capability up to 100 mA
- Self-discharge rate below 1% per year at 20 °C
- Stainless steel container with hermetic glass-to-metal sealing
- Non-flammable electrolyte
- COLOR WHITE/GREEN
- Brand SAFT
- Battery Size 1/2 AA
- Capacity 3.6VDC
- Typical Capacity 1.2 Ah
- Battery Type LITHIUM-THIONYL CHLORIDE
- Max Discharging Current 35 mA (CONTINUOUS)
- Operating Temp -60 to +85
- Max Charging Current NON RECHARGABLE
- Terminals FLAT CONTACT
BATLS14250_ds_1
