> >>HIKVISION DS-PM1-O1L-WB AX PRO WIRELESS RELAY MODULE LOW VOLTAGE 7–24VDC WHITE
AX PRO RELAY MODULE View larger

HIKVISION

HIKVISION DS-PM1-O1L-WB AX PRO WIRELESS RELAY MODULE LOW VOLTAGE 7–24VDC WHITE

HIKDS-PM1-O1L-WB

DS-PM1-O1L-WB

New product

HIKVISION DS-PM1-O1L-WB AX PRO WIRELESS RELAY MODULE LOW VOLTAGE 7–24VDC WHITE

More details

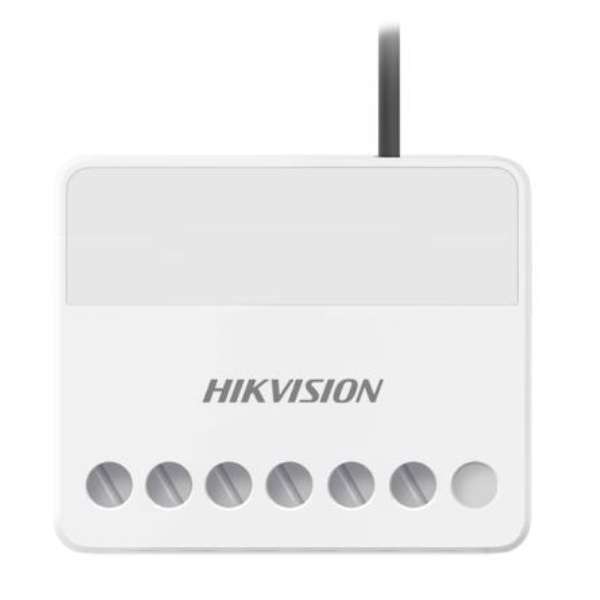

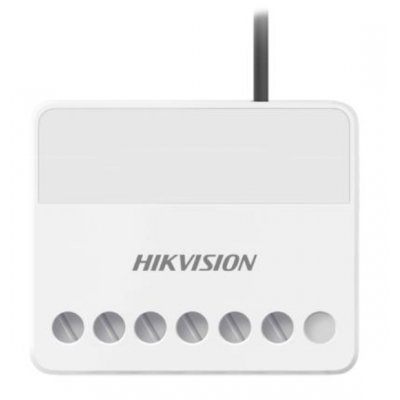

HIKDS-PM1-O1L-WB AX PRO Wireless Relay Module

The HIKDS-PM1-O1L-WB is a high-quality AX PRO wireless relay module designed for controlling low-voltage electrical power circuits. Supporting 7–24 VDC input, it allows open/close circuit operation manually via app, keypad, or keyfob, or automatically through linked system events such as alarms, faults, or schedules. Measuring 38 × 25 × 18 mm and weighing 28.5 g, it features a compact design for discreet installation, LED status indicators, and an alarm input for tamper detection with NO/NC configuration.

Ideal for residential, commercial, and industrial automation, it operates on 433 MHz two-way wireless communication with AES-128 encryption, provides an 800 m open-space range, and includes one NO/NC relay output rated up to 36 VDC 5 A for powering or switching external devices.

Key Features

  • 7–24 VDC low-voltage relay control with manual or automated operation
  • Compact design for concealed installation with LED status indicators
  • 433 MHz two-way wireless with AES-128 encryption and 800 m range
  • Supports event-based scenarios by alarm, fault, schedule, or manual input
  • NO/NC relay output rated for 36 VDC 5 A with tamper alarm input
  • COLOR WHITE
  • PRODUCT TYPE RELAY BOARD
