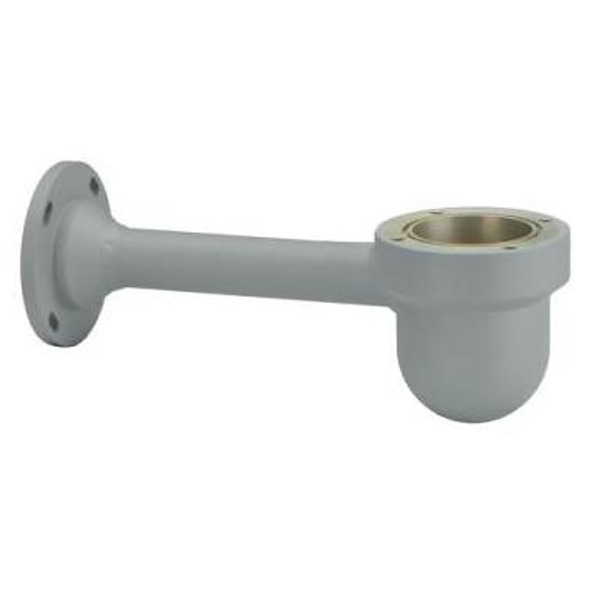

Wall Mount Bracket for MIC Camera

The MIC Wall Mount Bracket (MIC-WMB) allows mounting on building walls. It is also used with a MIC Pole Mount Bracket (MIC-PMB) and a MIC Shallow Conduit Adapter (MIC-SCA) to allow mounting on lamp posts, scaffolding, and other nonstandard mounting posts. The MIC WMB is manufactured from either aluminum or stainless steel. It has a deep bowl to accommodate the signal cable connections.

An O-ring seals the camera to mount interface to an ingress rating of IP68.

Supplied hardware includes:

• Four (4) M8 x 20 stainless steel hex bolts
• Four (4) M8 stainless steel plain washers
• One (1)O-ring, 80 mm x 3 mm
