GIANNI GIACK150 ELECTRIC MOTORIZED CABINET LOCK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 100KG HOLDING FORCE FAIL
GIACK150
GIACK150
New product

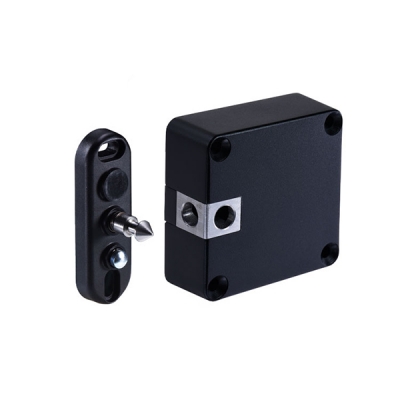

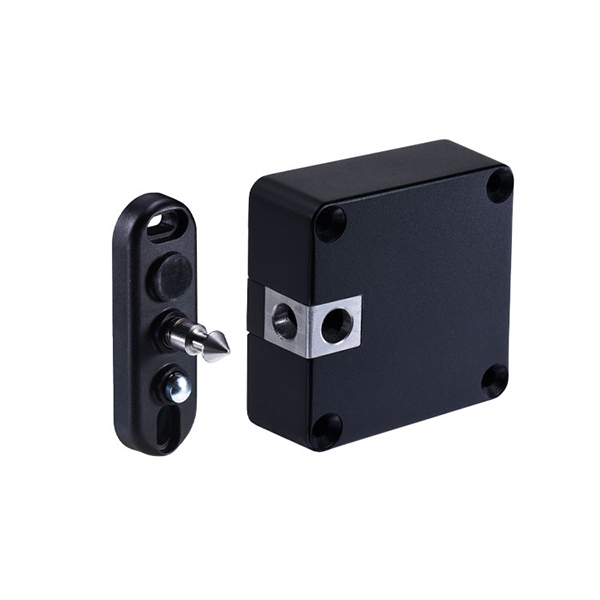

GIACK150 GEM CK150 Motorised Monitored Cabinet Lock - 12-24 V AC or DC
The GIACK150 GEM CK150 is a compact motor-operated cabinet lock with fail-secure operation and lock and door status monitoring outputs. It provides 220 lb (100 kg) of anti-pulling force for controlled access to drawers, filing cabinets, drug cabinets and gym lockers.
Designed for integration with access-control systems, the CK150 is compatible with existing keypads and credential readers and supports installation in various mounting positions. It accepts 12-24 V AC or DC and, when powered by DC, draws 70 mA during pull-in and 10 mA while holding at either 12 V or 24 V.
Key Features
- Spring-assisted door release helps present the cabinet door or drawer after unlocking
- Built-in relock time delay supports controlled automatic re-securing
- Multiple mounting positions accommodate varied cabinet and drawer layouts
- Compact 60 x 60 x 22 mm lock body suits space-conscious installations
- Three-year warranty provides defined coverage against material and workmanship defects
- Warranty 36 Months
- COLOR BLACK
- PRODUCT TYPE CABINET LOCK
- Brand GIANNI
- Unit Dimensions (mm) 60H x 60W x 22D
- Power 12 to 24VDC
- Mounting RECESSED MOUNT
- Device Type MOTORIZED CABINET LOCK
- Elec/Mech ELECTRIC
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- Holding Force 100KG
- PTO/PTL POWER TO OPEN (FAIL SECURE)
GIACK150_ds_1
