> >GALLAGHER C303900 SECURITY CABLE 2X 14/0.20 & 2X 24/0.20 2 PAIR STRANDED UNSCREENED PVC SHEATH 300M REEL ORANGE
New GALLAGHER C303900 SECURITY CABLE 2X 14/0.20 & 2X 24/0.20 2 PAIR STRANDED UNSCREENED PVC SHEATH 300M REEL ORANGE View larger

GALLAGHER

GALLAGHER C303900 SECURITY CABLE 2X 14/0.20 & 2X 24/0.20 2 PAIR STRANDED UNSCREENED PVC SHEATH 300M REEL ORANGE

GALC303900

C303900

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

C303900 Gallagher HBUS Data and Power Security Cable - Orange 300 m Box

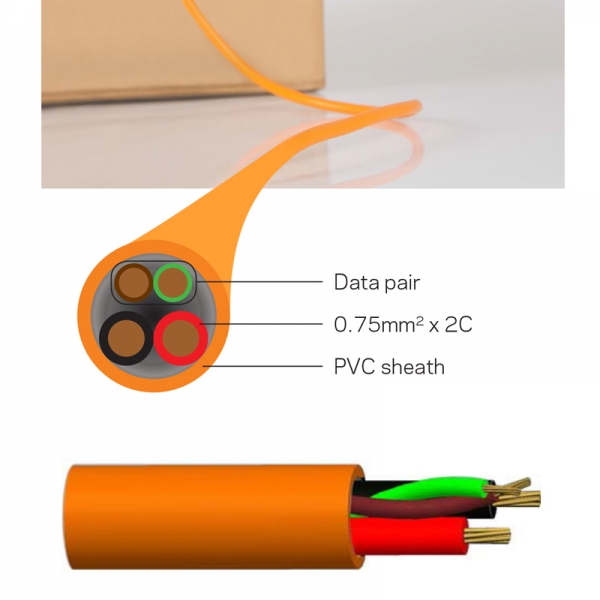

The Gallagher C303900 HBUS Data and Power Cable is designed for high-speed HBUS communications and security system installations. The cable features plain annealed copper construction with one stranded 21 AWG data pair rated at 14/0.2 mm and two stranded 18 AWG power conductors rated at 24/0.2 mm, enclosed in an orange PVC sheath.

The cable is supplied in a 300 m easy-feed box and features one-metre length markings and conductor sheaths matching standard HBUS wire colours for identification. The stranded conductor construction supports distribution to multiple devices, while the DC power conductors provide voltage-drop performance specified as equivalent to three times the distance of CAT5 cable.

Key Features

  • Designed for high-speed HBUS data communication in security system installations
  • Combines one stranded 21 AWG data pair with two stranded 18 AWG power conductors
  • Features stranded plain annealed copper conductors for distribution to multiple devices
  • Supplied in a 300 m easy-feed box with an orange PVC sheath
  • Features one-metre length markings and standard HBUS conductor colours for identification
  • Colour Orange
  • Warranty 12 Months
  • Brand GALLAGHER
  • Cable Type SECURITY
  • Size 2x 14/0.20 & 2x 24/0.20
  • Single Core 2 PAIR
  • Solid/Stranded STRANDED
  • Screen Type UNSCREENED
  • Sheath PVC
  • Cable Length (m) 300M
  • Storage Type REEL
