> >>>>HIKVISION DS-3E0103DP-E/R 100MBPS POE REPEATER 1X POE IN 2X POE OUT 30W 802.3AF/AT

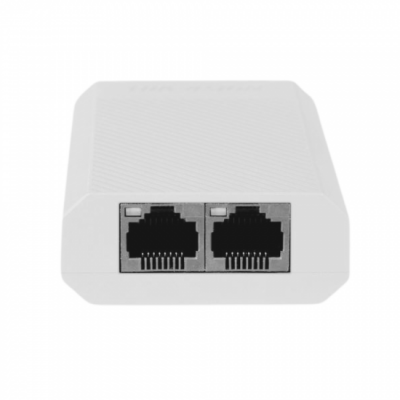

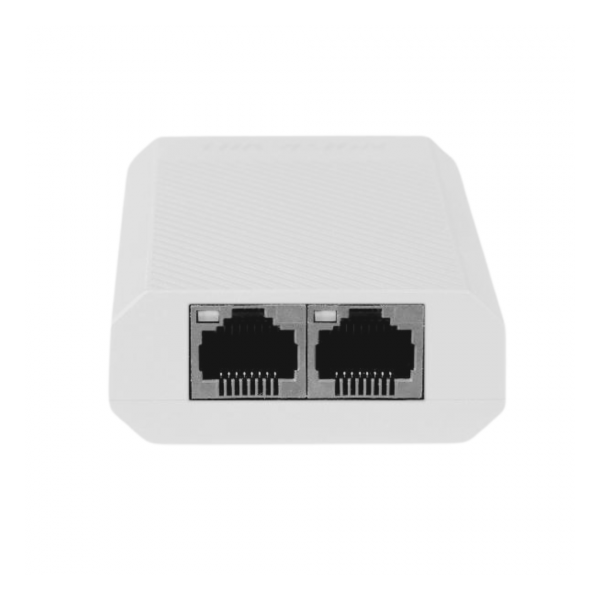

New HIKVISION DS-3E0103DP-E/R 100MBPS POE REPEATER 1X POE IN 2X POE OUT 30W 802.3AF/AT View larger

HIKVISION

HIKVISION DS-3E0103DP-E/R 100MBPS POE REPEATER 1X POE IN 2X POE OUT 30W 802.3AF/AT

HIKDS-3E0103DP-E/R

DS-3E0103DP-E/R

New product

HIKDS-3E0103DP-E/R Hikvision DS-3E0103DP-E/R 100 Mbps PoE Repeater - 1 PoE In 2 PoE Out 30W

The HIKDS-3E0103DP-E/R is a high-quality Power over Ethernet repeater designed for extending PoE power and data to remote IP cameras and network devices. Measuring 79×22×53 mm, it features a compact fan-free plastic enclosure, 1× 10/100 Mbps PoE IN and 2× 10/100 Mbps PoE OUT ports with intelligent PD detection to ensure reliable mid-span expansion and stable throughput.

Ideal for surveillance, hotels, campuses, factory dormitories, and SME networks, it complies with IEEE 802.3af/at and major safety, EMC, and environmental standards and offers plug-and-play setup with 2 kV surge protection and desktop installation, making it suitable for cost-effective indoor PoE extension.

Key Features

  • 1× PoE IN plus 2× PoE OUT 10/100 Mbps with up to 30 W per port and 30 W total PoE budget for downstream devices
  • Durable fanless plastic build for silent low-power operation
  • Simple plug-and-play repeater with LINK ACT status LED to extend runs beyond standard Ethernet limits
  • Compliant with IEEE 802.3af 802.3at and certified to UL 62368 CE EMC LVD RoHS WEEE REACH
  • Single in-line unit for expanding multi-camera PoE deployments and long-distance links
  • COLOR WHITE
  • PRODUCT TYPE POE CONVERTER
