FSH B1130B-SE 1130 SERIES SLIMLINE MECHANICAL DOOR CLOSER SILVER SURFACE MOUNT
FSHB1130B-SE
B1130B-SE
New product
BRITON B1130B-SE 1130 SERIES DOOR CLOSER SIZE 1-6 REG ARM SILVER
FSHB1130B-SE Briton 1130 Series Adjustable Size 1-6 Door Closer - Silver

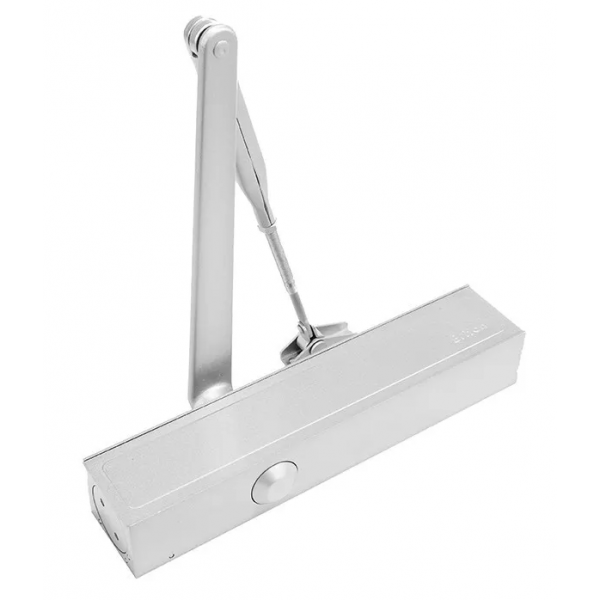

The Briton 1130 Series B1130B-SE is a non-handed slimline hydraulic door closer for commercial interior and exterior timber or metal doors. Supplied in a silver finish, this regular-arm closer has adjustable size 1-6 spring strength, a pressure die-cast aluminium body and a steel rack-and-pinion mechanism.
Designed for surface mounting, the closer supports regular pull-side, top-jamb push-side and parallel-arm push-side installation, with closing speed, latching speed and backcheck independently adjustable to suit the opening. The 1130 Series is tested to 500,000 cycles and has been successfully tested on fire door assemblies in accordance with AS 1905 Part 1; suitability should be confirmed with the fire door manufacturer before installation.
Key Features
- Non-handed fully reversible design simplifies door handing and product selection
- Adjustable closing power helps accommodate a broad range of commercial doors
- Independent hydraulic controls allow the closing cycle to be tuned for controlled operation
- Multiple mounting configurations provide flexibility across different door and frame arrangements
- Slimline surface-mounted format provides a neat result on timber or metal doors
- Colour Silver
- Warranty 10 YEARS
- COLOR SILVER
- PRODUCT TYPE DOOR CLOSER
- Brand FSH
- Unit Dimensions (mm) 60H x 257W x 48D
- Series 1130 SERIES
- Mounting SURFACE MOUNT
- Device Type DOOR CLOSER
- Slimline/Standard SLIMLINE
- Elec/Mech MECHANICAL
