HIKVISION HIK-7216HUHIM2XT ACUSENSE 16CH DVR +16 IP CH UP TO 8MP/4K H.265+ 256MBPS 2X SATA UP TO 12TB EACH HDMI VGA BNC RS485
HIKDS-7216HUHIM2XT
HIK-7216HUHIM2XT
New product

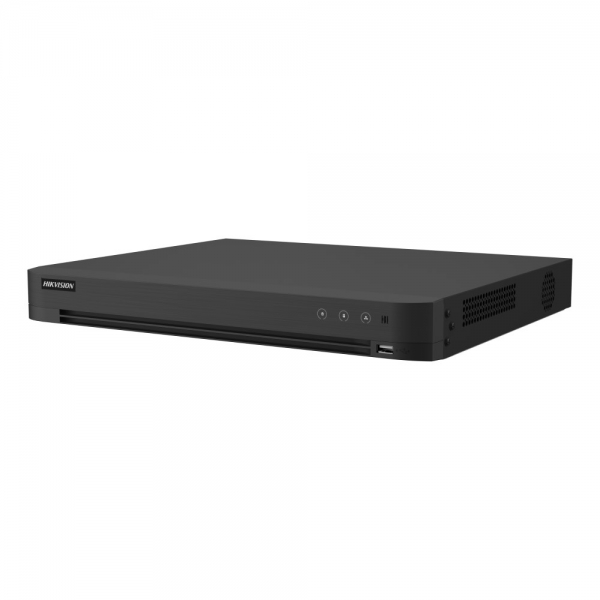

HIK-7216HUHIM2XT Hikvision AcuSense 16-Channel 8 MP DVR - 2 HDD Bays
The Hikvision HIK-7216HUHIM2XT corresponds to model iDS-7216HUHI-M2/XT. This AcuSense DVR provides sixteen analogue video inputs and sixteen IP camera inputs expandable to thirty-two IP channels, with each IP channel supporting up to 8 MP. Adaptive inputs accept HDTVI, AHD, HDCVI, CVBS and IP signals with H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression.
The recorder supports 8 MP encoding at 8 fps, up to 24-channel 1080p decoding and 256 Mbps total bandwidth. Two SATA interfaces accommodate drives up to 12 TB each. Interfaces include HDMI, VGA, CVBS, Gigabit Ethernet, RS-485, one RCA audio input, one RCA audio output, sixteen-channel coaxial audio and three USB ports. Power is supplied through a 12 VDC 5 A input.
Key Features
- Motion Detection 2.0 classifies human and vehicle targets across sixteen analogue channels
- Up to eight analogue channels of deep-learning perimeter protection
- Four-channel face capture and face-picture comparison support
- Eight-channel AcuSearch technology for recorded-event searches
- Sixteen-channel synchronous playback for multi-camera review
- Channels 16CH
- Colour Black
- Resolution UPTO 8MP/ 4K
- Voltage 12VDC
- Warranty 36 Months
- Brand HIKVISION
- Unit Dimensions (mm) 52H x 385W x 315D
- Weight (kg) 2.1
- Series ACUSENSE
- AI YES
- Compression H.264/4+/5/5+
- Audio In 1x AUDIO IN + 16CH COAXIAL AUDIO
- Audio Out 1x AUDIO OUT
- NVR/XVR DVR
- Network Port 1xNIC
- Bandwidth 256Mbps
- HDD Port 2xSATA
- Max HDD Size 12TB
- Display HDMIx1 VGAx1 BNCx1
- USB Port 1x FRONT/ 2x REAR USB PORT
- Serial Interface RS485
- Decoding 24CH@1080P(30FPS)
- Add. IP Ch '+16IP
