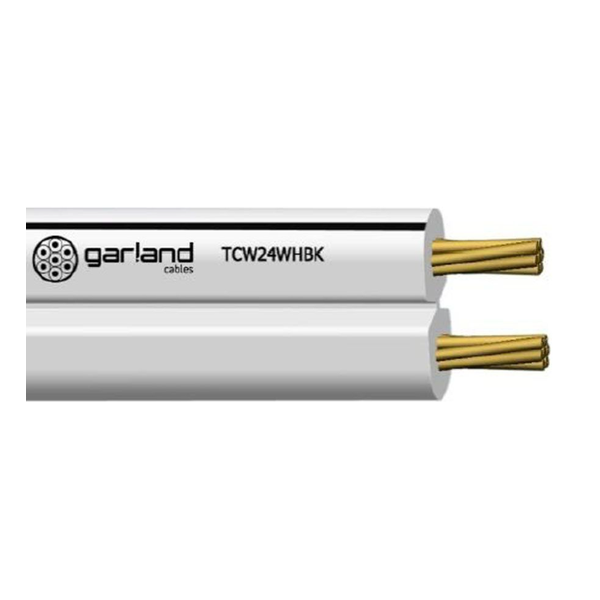

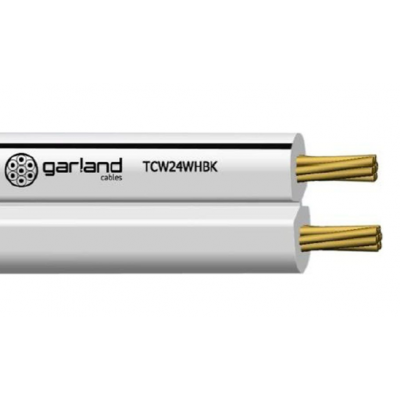

GARLAND TCW24WHBK250W FIG8 CABLE 24/0.20 2C STRANDED UNSCREENED PVC SHEATH 250M WHITE/BLACK
CBLFIG824020-250WHT/BLK
TCW24WHBK250W
New product
GARLAND TCW24WHBK250W Figure 8 Cable 19AWG 24/0.20 2C 250m White-Black - 250m Reel
The GARLAND TCW24WHBK250W is a commercial-grade Figure 8 twin-core cable designed for reliable power and low-voltage wiring in electronic and allied equipment, extension speakers, and security system installations. Supplied as a 250m reel, it features stranded 19AWG PACW conductors (24/0.20, 0.75 mm2) with V-75 PVC insulation and a durable unscreened PVC sheath, delivering a compact 2.7 x 5.4 mm nominal OD for easy routing in tight spaces.
Ideal for installers, technicians, and contractors, it is rated to 250V AC and tested for high dielectric strength, with a maximum conductor DC resistance of ≤ 26.0 ohm/km at 20°C and an operating temperature range of -15°C to 70°C, making it suitable for demanding industrial, commercial, and maintenance environments.
Key Features
- Figure 8 twin-core cable with 2 cores of stranded 19AWG PACW (24/0.20) for flexible reliable wiring
- Conductor size 0.75 mm2 with 1.13 mm conductor diameter for robust performance and easy termination
- V-75 PVC insulated unscreened PVC sheath with nominal OD 2.7 x 5.4 mm for neat installs
- Rated 250V/250V AC with max DC resistance ≤ 26.0 ohm/km at 20°C and flame propagation to AS 1660.5.6
- 250m white jacket with black stripe supplied on reel for installers and trade applications
- COLOR WHITE/BLACK
- PRODUCT TYPE FIG 8 CABLE
CBLFIG824020-250WHT-BLK_fds_1
