> >>BOSCH DS1101I GLASSBREAK DETECTOR WIRED 7.6M RANGE FORM C SPDT RELAY TAMPER CEILING/WALL MOUNT 6-15VDC 86DIAX2

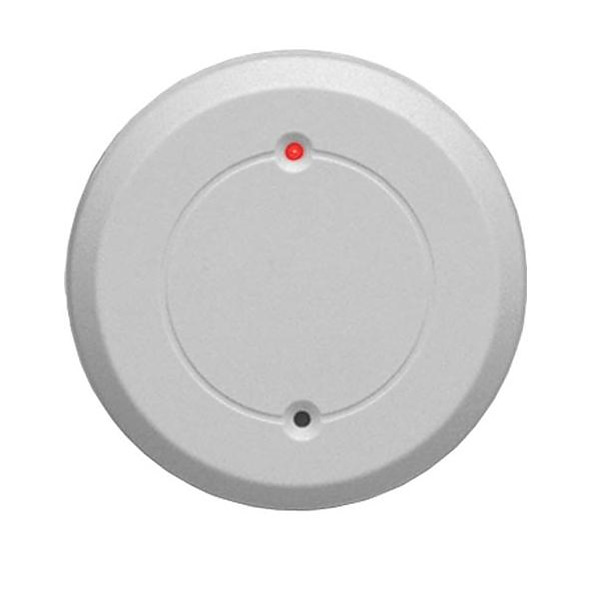

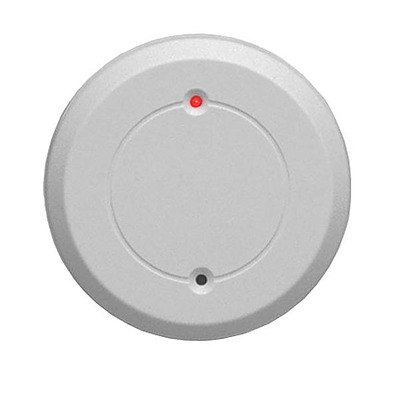

Glassbreak Detector View larger

BOSCH

BOSCH DS1101I GLASSBREAK DETECTOR WIRED 7.6M RANGE FORM C SPDT RELAY TAMPER CEILING/WALL MOUNT 6-15VDC 86DIAX2

BOSDS1101I

F.01U.413.580 DS1101i

New product

Glassbreak Detector

More details

BOSDS1101i Bosch DS1101i Glassbreak Detector Wired 7.6 m SPDT Tamper 6 15 VDC White - Each

The BOSDS1101i is a high-quality acoustic glass break detector designed for perimeter intrusion protection. Measuring 86 mm diameter x 21 mm height, it features a high impact ABS enclosure and microprocessor based Sound Analysis Technology to ensure accurate detection of plate tempered laminated and wired glass with strong false alarm immunity.

Ideal for ceiling or wall mounting in retail offices schools and commercial facilities, it complies with CE UL and ULC listings and offers a Form C SPDT alarm relay plus a normally closed tamper for secure wiring, making it suitable for professional wired security systems.

Key Features

  • 7.6 m 25 ft coverage with SAT signal processing for reliable glass break detection
  • Rugged ABS housing rated for -29 to +49 C operation for dependable performance
  • Magnet operated test mode with sound check and optional DS1110i tester for fast commissioning
  • Form C relay 3.5 W 125 mA at 28 VDC and NC cover tamper with separate terminals
  • 6 to 15 VDC power at 23 mA typical packaged Each for single point installations
  • COLOR WHITE
  • PRODUCT TYPE GLASS BREAK DETECTOR
