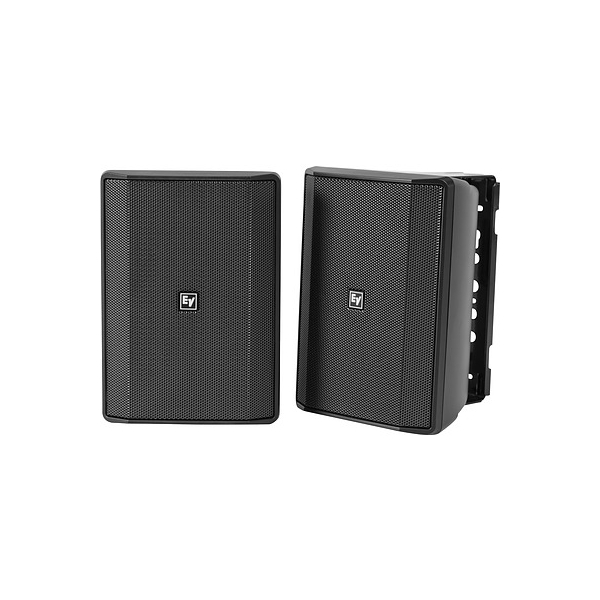

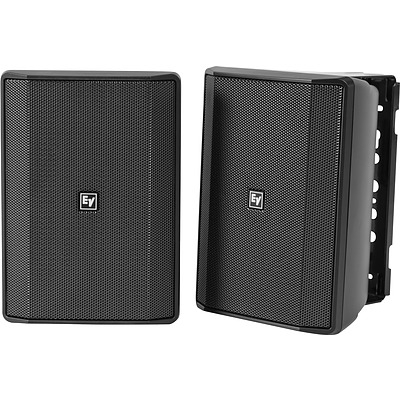

> ELECTRO VOICE EVID-S-5.2XB EVID-S 5.25" 2-WAY FULL RANGE 100V LINE 60W IP65 8 OHM WALL MOUNTED SURFACE MOUNT SPEAKER PAIR BLACK
New ELECTRO VOICE EVID-S-5.2XB EVID-S 5.25" 2-WAY FULL RANGE 100V LINE 60W IP65 8 OHM WALL MOUNTED SURFACE MOUNT SPEAKER PAIR BLACK View larger

ELECTRO VOICE

ELECTRO VOICE EVID-S-5.2XB EVID-S 5.25" 2-WAY FULL RANGE 100V LINE 60W IP65 8 OHM WALL MOUNTED SURFACE MOUNT SPEAKER PAIR BLACK

ELEEVID-S-5.2XB

EVID-S-5.2XB

New product

ELEEVID-S-5.2XB Electro-Voice 5.25-Inch Two-Way Surface-Mount Speakers 70/100 V IP65 - Black Pair

The Electro-Voice EVID-S5.2XB is supplied as a pair of black 5.25-inch two-way full-range surface-mount loudspeakers for professional indoor and outdoor installations. Each speaker combines a weather-resistant polypropylene-cone woofer with a waveguide-coupled 20 mm ferrofluid-cooled high-frequency driver and an internal 60 W transformer for 70 V and 100 V distributed audio systems.

Engineered for demanding environments, the IP65-rated speakers are suitable for background and foreground music, voice evacuation, paging and sound reinforcement. The supplied marine-grade aluminium U-bracket supports flexible installation, while the rear-panel transformer selector provides 70 V, 100 V or 8-ohm operation.

Key Features

  • 5.25-inch two-way full-range surface-mount loudspeakers supplied as a pair.
  • IP65-rated weatherproof construction for demanding indoor and outdoor environments.
  • Integrated 60 W transformer supports 70 V, 100 V and 8-ohm operation.
  • Marine-grade aluminium U-bracket provides flexible mounting with up to 80° of rotation.
  • Weather-resistant polypropylene woofer extends low-frequency performance to 55 Hz.
  • Waveguide-coupled high-frequency driver provides 90° by 90° coverage.
  • Removable 4-pin Euroblock connector supports pass-through wiring to additional speakers.
  • Black finish complements professional installed audio applications.
  • Colour Black
  • Impedance 8 Ohm
  • IP Rating IP65
  • Sensitivity 89 DB
  • Warranty 3 Years
  • PRODUCT TYPE SURFACE MOUNT SPEAKER
  • Max SPL (dB) 108 DB
  • Max Wattage 75W
  • Mount Type WALL MOUNTED
  • Enclosure FIRE RATED ABS PLASTIC
  • Brand ELECTRO VOICE
  • SPL (dB) 108
  • Power Type 70V/100V LINE
  • Input Connector 2 X REMOVABLE LOCKING 4-PIN EUROBLOCK CONNECTORS
  • Unit Dimensions (mm) 255H x 180W x 148D
  • Weight (kg) 3.2 KG
  • Dispersion Angle 90H X 90V
  • Hertz 55-20000HZ (-10dB)
  • Peak Power (W) 300W
  • Max 100V Tap (W) 60W
  • 100V Taps List 15W;30W;60W
  • Max 70V Tap (W) 60W
  • 70V Taps List 7.5W;15W;30W;60W
  • HF Driver Size 0.75"
  • LF Driver Size 5.25"
  • Pair PAIR
  • Config 2-WAY FULL RANGE
  • Voice Coil Size 1" LF
  • Series EVID-S
  • Driver Size 5.25"
