BOSCH IIR-50850-XR IR ILLUMINATOR 850NM EXTRA RANGE BLACK WITH ADJUSTABLE IR INTENSITY PHOTOCELL INC 5 INTERCH

Product Code: BOSIIR-50850-XR

Supplier SKU: IIR-50850-XR

Condition: New product

More info
Specifications
Download

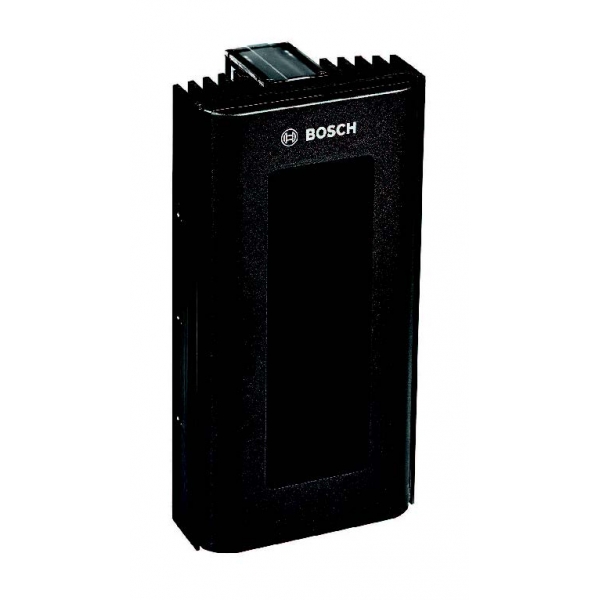

IIR-50850-XR Bosch IR Illuminator 850nm Extra Range

The IIR-50850-XR is a high-performance infrared LED illuminator designed for covert or semi-covert night surveillance with CCTV and IP security cameras in demanding indoor and outdoor environments. Operating at 850nm with adjustable IR intensity from 10% to 100%, it uses energy-efficient high-power surface-mount LEDs, interchangeable beam pattern diffusers (10°, 30°, 60°, 95°), and advanced thermal management to deliver long-distance scene illumination with reduced image noise and lower video bit rates.

Ideal for perimeter security, critical infrastructure, and long-range monitoring, it features an integrated adjustable photocell (20–70 lx), telemetry input and photocell output for external switching, plus a self-cleaning, vandal-resistant polycarbonate window to cut maintenance. Built in a robust black anodized aluminum housing with a pressure equalization valve and an adjustable powder-coated stainless steel U-bracket, it is rated IP66 and IK09 and meets key CE/UKCA/UL/FCC/RoHS requirements for reliable all-weather deployments.

Key Features

850nm IR illumination with extra-range performance up to 308 m depending on diffuser and camera/lens
Adjustable IR power output 10% to 100% for precise scene tuning and reduced overexposure
Integrated adjustable photocell day/night switching 20 to 70 lx with telemetry input and photocell output
Rugged outdoor-ready build IP66 and IK09 with self-cleaning high-transmittance polycarbonate front window
12 to 32 VDC operation at 52 W includes adjustable U-bracket 3 m cable and 5 interchangeable diffuser lenses
