FSH FDH50 SERIES ELECTRIC ELECTROMAGNETIC DOOR HOLDER 45KG HOLDING FORCE FAIL SAFE FLOOR MOUNTED 4 HOUR FIRE RATING 12 OR 24VDC
FSHFDH50
FDH50
New product

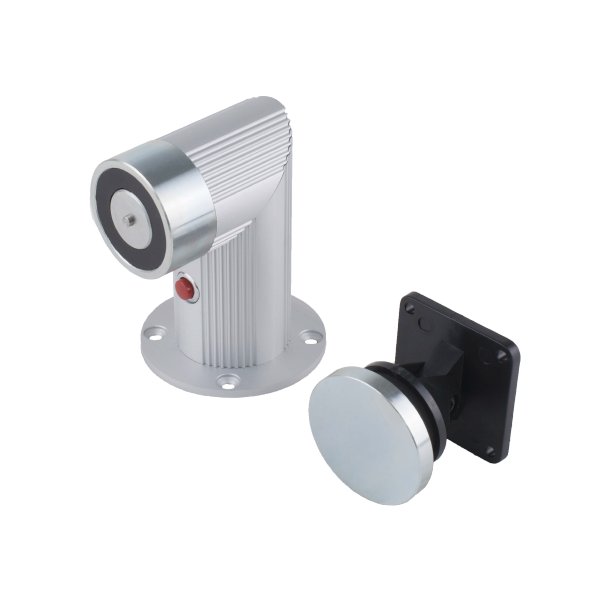

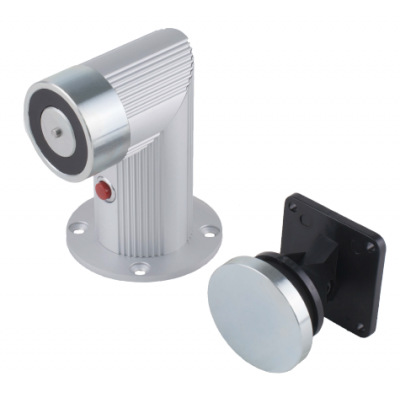

FDH50 Series Electromagnetic Door Holder
The FDH50 is a low-current electromagnetic door holder for swing doors, providing up to 45 kg of holding force. Its field-selectable input operates at 12 VDC/100 mA or 24 VDC/50 mA, enabling connection to a suitable fire detection system power supply.
Designed for either floor or wall mounting, the unit suits a wide range of swing-door layouts. When installed with the supplied B110DH armature plate, it has been tested for up to 4 hours on fire door assemblies as specified in AS 1905.1:2015.
Key Features
- Fail-safe operation supports prompt door release when electrical power is removed
- Integrated release and test control makes local operation and routine checks straightforward
- Silent operation helps minimise disturbance in occupied areas
- Compact construction supports unobtrusive integration around the doorway
- Five-year mechanical and electronic warranties provide consistent product coverage
- Warranty LIMITED LIFETIME
- COLOR SILVER
- PRODUCT TYPE MAGNETIC DOOR HOLDER
- Brand FSH
- Unit Dimensions (mm) 80DIA x 110H x 80W x 140D
- Series FDH50 SERIES
- Power 12 or 24VDC
- Mounting FLOOR MOUNT
- Device Type ELECTROMAGNETIC DOOR HOLDER
- Elec/Mech ELECTRIC
- Holding Force 45KG
- PTO/PTL FAIL SAFE
- Fire Rating 4 HOUR FIRE RATING
