Network Video Recorder 16 Channel with 4TB HDD View larger

Network Video Recorder 16 Channel with 4TB HDD


New product

Network Video Recorder 16 Channel with 4TB HDD

More details

Get Smart Security Bickley 0419 902 447
Coast to Coast Alarms Baldivis 1300 667 728

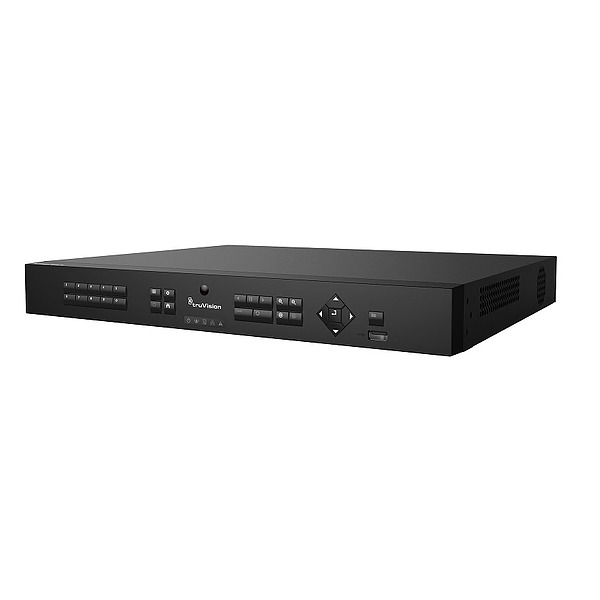

The TruVision® NVR 11 (TVN 11) is a cost effective, network video recorder with 16 built in PoE ports designed to support video streams from IP video cameras. With a total of 40/80/160Mbps of incoming bandwidth available, the NVR 11 can support up to 16 cameras at HD resolution in real time (30fps) and many other configurations. Flexible bandwidth allocation per channel allows users to maximize recording performance. In addition to browser, software and mobile device management tools, the familiar front panel controls allow for easy operation. For ease of camera installation, on board PoE ports support up to 200 watts for 16 channel models.

IP camera support includes resolutions ranging from standard VGA to 4k (8MPx), including Interlogix and third party IP camera manufacturers using the ONVIF® protocol. The NVR 11 also supports TruVision encoders for integrating existing analog cameras. With 4TB internal HDD storage, the NVR 11 is ideal for smaller installations while still supporting megapixel camera applications.

Recording options include continuous, motion/alarm triggered, or combined scheduled recording modes. Motion recording utilizes an IP camera’s built in motion detection events, and alarms can be triggered from any of the four on board alarm inputs or from alarm inputs that reside on the IP camera.

Software connectivity allows remote access to the recorder’s full capabilities via Web browser, TruVision Navigator or TruVision TVRMobile. TruVision TVRMobile also allows for remote device access. Configuration is quick and easy through startup wizards, IP device auto discovery tools and ezDDNS service.


  • Supports 3rd party cameras via ONVIF Profile S
  • TruVision VGA through 4K (8MPx) (indoor and outdoor)
  • PTZ and dome camera control via mouse, front panel and IR remote control
  • Built in PoE ports
  • Plug and play camera installation
  • Continuous, motion/alarm triggered or scheduled recording modes
  • Event recording
  • Fully compatible with TruVision Navigator software
  • Audio recording with capable IP cameras
  • Local USB archiving
  • VGA and HDMI output for high quality local viewing
  • Channels 16
  • Colour Black
  • Dimensions (H x W x D) 318.5 x 51.5 x 380mm
  • PoE Ports 16
  • Storage 4TB
  • Warranty 3 Years
  • Weight 2.5kg
