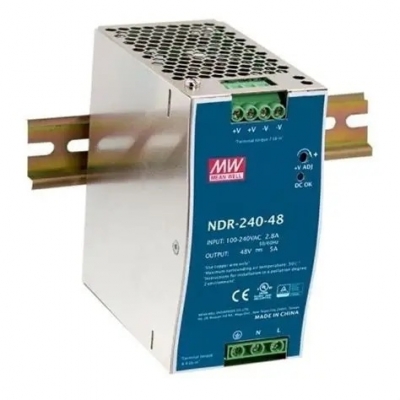

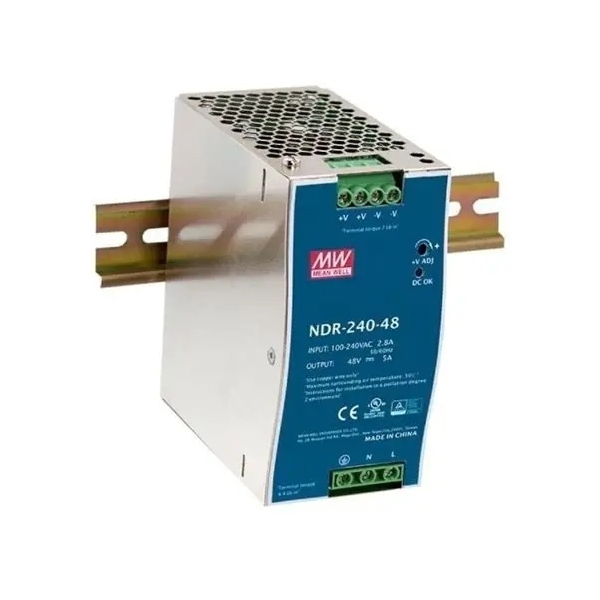

> >>>>MEAN WELL PWR-NDR-240-48 48VDC 5A (240W) SINGLE OUTPUT DIN RAIL POWER SUPPLY 125.2Hx63.5Wx113.5D (MM)
New MEAN WELL PWR-NDR-240-48 48VDC 5A (240W) SINGLE OUTPUT DIN RAIL POWER SUPPLY 125.2Hx63.5Wx113.5D (MM) View larger

MEANWELL

MEAN WELL PWR-NDR-240-48 48VDC 5A (240W) SINGLE OUTPUT DIN RAIL POWER SUPPLY 125.2Hx63.5Wx113.5D (MM)

MEAPWR-NDR-240-48

PWR-NDR-240-48

New product

MEAPWR-NDR-240-48 Mean Well 48V 5A 240W Single Output DIN Rail Power Supply - 125.2H x 63W x 113.5D mm

The MEAPWR-NDR-240-48 is a high-quality industrial DIN rail power supply designed for control panels, machinery, and factory automation. Measuring 125.2 x 63 x 113.5 mm, it features a robust metal housing with free air convection cooling and active PFC to ensure reliable 48V 5A 240W output with up to 90 percent efficiency and stable performance from 90 to 264VAC.

Ideal for OEM cabinets and retrofit upgrades, it complies with UL508 and EN62368-1 safety standards and Class B EMC, delivering short circuit overload over voltage and over temperature protection plus wide -20 to 70 degree C operation for harsh industrial environments.

Key Features

  • 48VDC 5A 240W single output with 48 to 55V adjustment for precise system power
  • Metal chassis enhances heat dissipation for dependable long-term service
  • DIN rail TS35 mounting with DC OK LED and screw terminals for fast installation
  • Certified to UL508 EN62368-1 with EMC EN55032 Class B and EN61000-6-2 immunity
  • Universal 90 to 264VAC input and 3 year warranty for industrial control use
  • COLOR SILVER
  • PRODUCT TYPE POWER SUPPLY
