FSH HL1260 ELECTRIC MOTORISED HOOK LOCK STAINLESS STEEL MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 650KG HOLDING FORCE
FSHHL1260
HL1260
New product
High Security Motorised Hook Lock

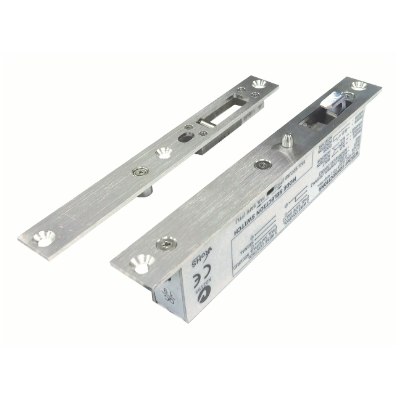

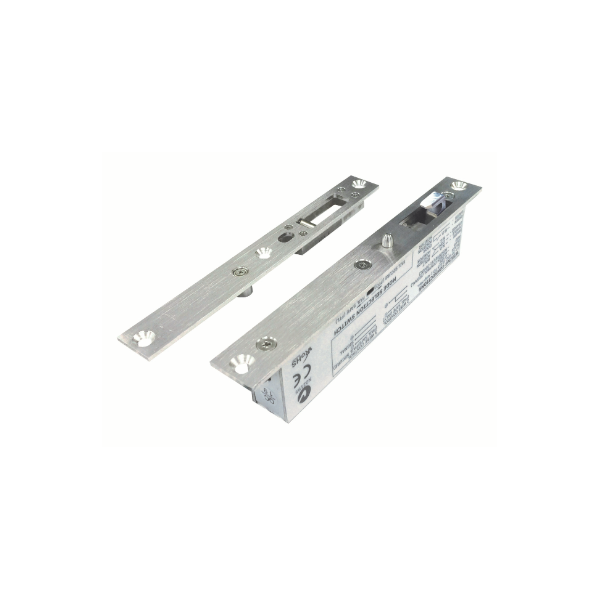

HL1260 High Security Motorised Hook Lock
The FSH HL1260 is a monitored motorised hook lock designed for high-security sliding-door applications. Its mortice-mounted mechanism provides holding strength of up to 650 kg, accepts 11-30 V DC power and reports both internal lock status and door position through a built-in reed switch.
Installed vertically in the frame with the strike plate mounted on the door edge, the HL1260 provides a discreet locking arrangement for protected commercial sliding doors. It is rated for up to 4 hours on fire door assemblies in accordance with AS 1905.1:2015 and conforms to S3 security and D3 durability under AS 4145.2:1993.
Key Features
- Field-selectable PTO or PTL operation allows the locking logic to be configured during installation
- Low sleep-mode current supports efficient operation between locking and unlocking cycles
- High-torque motor drive promotes positive hook engagement for sliding-door security
- Satin stainless steel finish provides a neat professional appearance at the door edge
- Five-year mechanical and electronic warranty coverage supports long-term product ownership
- Certifications Up to 4-hour fire rated
- Colour STAINLESS STEEL
- Holding Strength Up to 650kg
- IP Rating NO IP RATING
- Voltage Multi Voltage 12-30VDC
- Warranty 60 Months
- Brand FSH
- Unit Dimensions (mm) 230H x 25W x 41.5D
- Power 11-30VDC
- Mounting MORTISE MOUNT
- Device Type MOTORISED HOOK LOCK
- Elec/Mech ELECTRIC
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- Holding Force 650KG
- PTO/PTL PTO/PTL FIELD INTERCHANGEABLE
- Fire Rating 4 HOUR FIRE RATING
