> >>GARLAND MC147S 250M SCREENED SECURITY CABLE 7C 21AWG 14/0.20MM AL/POLY DRAIN WIRE PVC SHEATH GREY

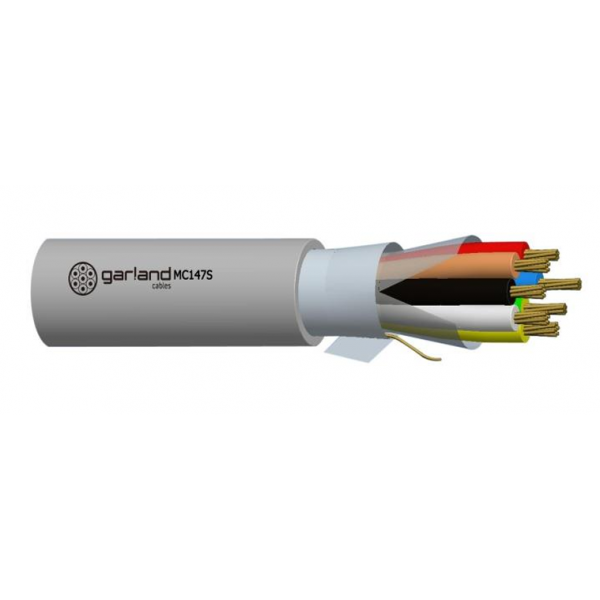

GARLAND MC147S 250M SCREENED SECURITY CABLE 7C 21AWG 14/0.20MM AL/POLY DRAIN WIRE PVC SHEATH GREY View larger

GARLAND

GARLAND MC147S 250M SCREENED SECURITY CABLE 7C 21AWG 14/0.20MM AL/POLY DRAIN WIRE PVC SHEATH GREY

MADMC147S

MC147S

New product

MADMC147S Garland MC147S Screened Security Cable 7C-21AWG-14-0-20mm-250m

The MADMC147S is a high-quality screened security cable designed for reliable low-voltage signal and control wiring in intruder alarm systems intercoms and general security installations. Built with 7 cores of stranded 21AWG 14/0.20mm conductors and PVC insulation it features an aluminium polyester tape overall screen with 100 percent coverage plus a stranded 24AWG drain wire to reduce interference and support clean stable transmission.

Ideal for interconnecting security panels sensors readers and communications devices it complies with AS-ACIF S008 and BS4737-3.30 and offers an ELV voltage rating plus robust mechanical handling for professional installations. With a grey PVC sheath 6.6mm nominal OD and a -15 to 70C operating range it is well suited to commercial and residential cabling runs where dependable shielding flexibility and easy identification are required while remaining not suitable for mains connection.

Key Features

  • 7 core screened security cable with stranded 21AWG 14/0.20mm conductors for alarm and intercom wiring
  • Aluminium polyester tape overall screen with 100 percent coverage plus 24AWG stranded drain wire for improved EMI noise rejection
  • PVC insulated cores with colour set white blue red black yellow green brown and durable grey PVC sheath
  • ELV rated with electrical test performance 1.5kV ac per 1 minute conductor to core and 3.0kV ac per 1 minute core to sheath
  • 250m supply length for efficient site work with install bend radius 65.5mm and max recommended pulling tension 215N
  • COLOR GREY
  • PRODUCT TYPE SECURITY CABLE
