> >>GARLAND MC144GY SECURITY CABLE 4C 14/0.20 STRANDED UNSCREENED PVC SHEATH 300M GREY
New GARLAND MC144GY SECURITY CABLE 4C 14/0.20 STRANDED UNSCREENED PVC SHEATH 300M GREY View larger

GARLAND

GARLAND MC144GY SECURITY CABLE 4C 14/0.20 STRANDED UNSCREENED PVC SHEATH 300M GREY

MADMC144GY300BW

MC144GY300BW

New product

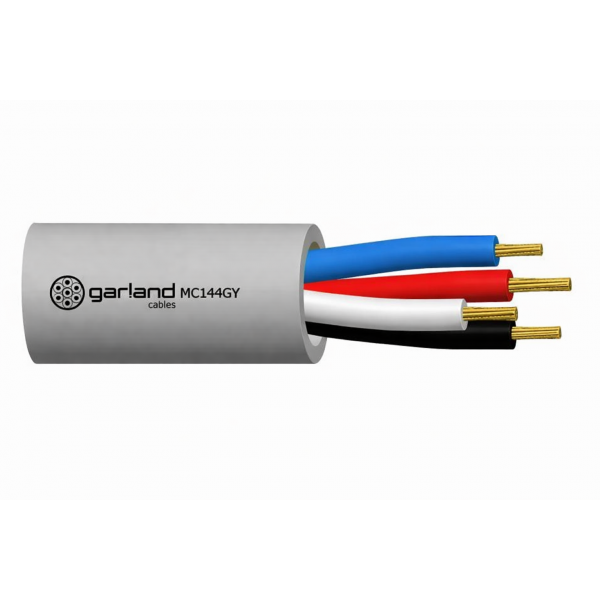

Garland MC144GY300BW Security Cable 4 Core 14-0.20 300m Grey

The MC144GY300BW is a high-quality security and alarm cable designed for reliable low-voltage interconnection wiring in intruder alarm, access control, and intercom systems. Supplied as a 300m reel in a tough grey PVC sheath, it uses 4 colour-coded cores with stranded 21 AWG 14/0.20 PACW copper conductors for flexible routing, stable signal transmission, and consistent performance on site.

Ideal for professional security and data-lite control wiring, it complies with AS/ACIF S008 and BS4737-3.30 and is rated for ELV applications, offering dependable insulation integrity and easy identification during installation, making it suitable for commercial, residential, and light-industrial environments (not suitable for mains connection).

Key Features

  • 4 core security cable with stranded 21 AWG 14-0.20 PACW copper conductors for flexible low-current wiring
  • PVC insulation on each core and durable grey PVC outer sheath for robust protection and long service life
  • Nominal overall diameter 4.7mm with colour-coded cores red black white blue for fast termination and tracing
  • Standards compliant AS-ACIF S008 and BS4737-3.30 with ELV rating and 1.5kV to core and 3.0kV to sheath test performance
  • 300m reel box format for efficient installers runs plus -15 to 70C operating range with 47mm minimum bend radius
  • COLOR GREY
  • PRODUCT TYPE SECURITY CABLE
