> >>HIKVISION DS-KD-DIS KD8 SERIES MODULAR DOOR STATION DISPLAY MODULE 2ND GEN 3.5 INCH IP65
New HIKVISION DS-KD-DIS KD8 SERIES MODULAR DOOR STATION DISPLAY MODULE 2ND GEN 3.5 INCH IP65 View larger

HIKVISION

HIKVISION DS-KD-DIS KD8 SERIES MODULAR DOOR STATION DISPLAY MODULE 2ND GEN 3.5 INCH IP65

HIKDS-KD-DIS

DS-KD-DIS

New product

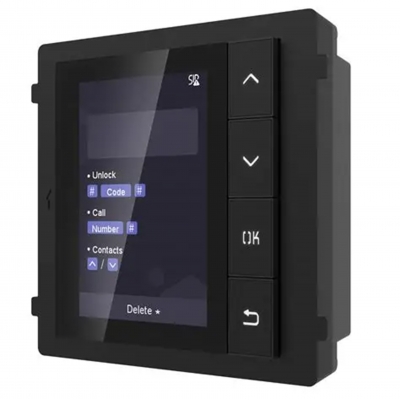

HIKDS-KD-DIS KD8 Series Modular Door Station Display Module 3.5in-IP65-2nd-Gen

The HIKDS-KD-DIS is a high-quality modular door station display module designed for Hikvision KD8 Series Pro intercom and access control entry systems. Featuring a 3.5 inch TFT LCD at 320x480 resolution with adjustable brightness up to 250 cd-m2, it provides rich on-screen information for dial number entry PIN code unlock and contact list navigation while using durable physical button control for reliable everyday operation.

Ideal for outdoor apartment lobbies commercial entrances and multi-tenant sites, it stores up to 2000 contacts and includes backlight compensation behind the module for improved visibility in challenging lighting. With an IP65 protection level flush or surface mounting options RS-485 interface and a compact 98.5 x 100 x 34.2 mm form factor, it delivers weather resistant performance from -20C to 60C at 10 to 95 percent non condensing humidity while consuming only 2.5 W making it a smart choice for modern modular video intercom door stations.

Key Features

  • 3.5 inch TFT LCD display supports dial number PIN code unlock and contact list functions
  • Stores up to 2000 contacts for multi tenant directories and fast resident lookup
  • IP65 rated outdoor module with backlight compensation for clearer viewing
  • Linux based system with 8 MB ROM 64 MB RAM and 4 physical buttons for stable operation
  • Installer flexible flush mounting or surface mounting with RS-485 interface for KD8 modular builds
  • COLOR BLACK
  • PRODUCT TYPE INTERCOM
