HIKVISION DS-KD8003-IME1(B) KD8 SERIES IP VIDEO DOOR STATION 2MP FISHEYE IR MIC IP65 POE GREY/BLACK

Product Code: HIKDS-KD8003-IME1(B)

Supplier SKU: DS-KD8003-IME1(B) 305303026

Condition: New product

More info
Specifications
Download

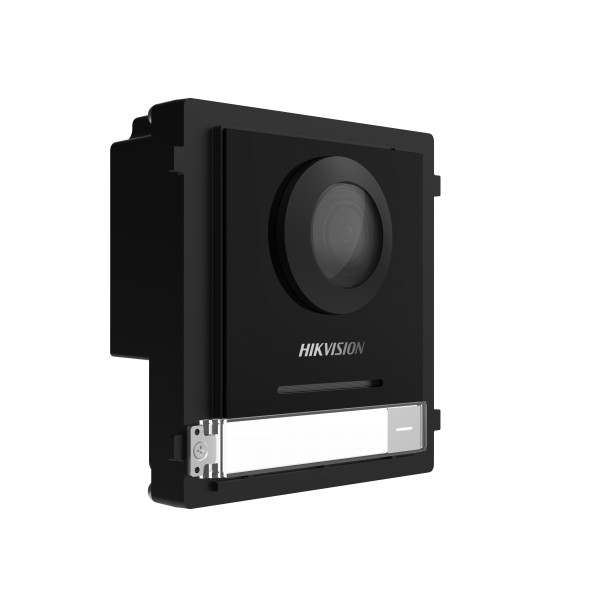

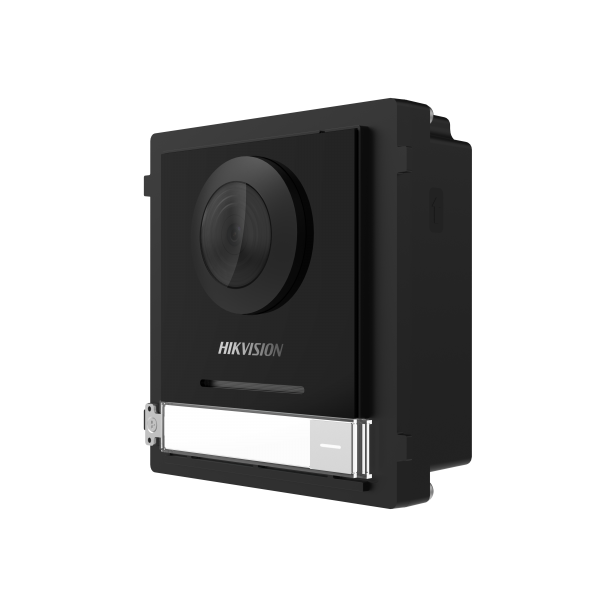

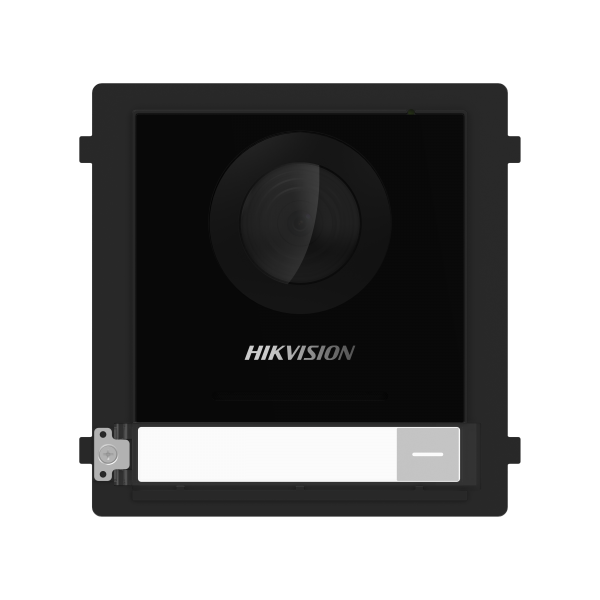

Hikvision DS-KD8003-IME1B KD8 Series Modular Door Station 2MP Fisheye IR - Single Unit

The DS-KD8003-IME1B is a high-quality IP video intercom door station main unit designed for secure entry control at homes, apartments, and commercial buildings. Featuring a 2MP fisheye camera with 146° horizontal and 82° vertical field of view plus IR supplement lighting and WDR support, it delivers wide-angle identification in low light and challenging backlight scenes.

Ideal for outdoor door entry and access control, it complies with IP65 weather protection and IEEE 802.3af PoE for clean single-cable installation, while ONVIF, IPv6, RTSP, and TCP/IP support simplify integration and remote web configuration. With a built-in omnidirectional microphone, loudspeaker, echo cancellation and noise suppression, and dual-lock control including 2 relay outputs (max 30 VDC, 2 A) plus direct 12 VDC 500 mA lock power output, it provides reliable, professional-grade visitor communication and door release in demanding environments.

Key Features

2MP fisheye IP camera with WDR and IR supplement lights for wide-angle day night video monitoring
Built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation for clear two-way audio
Dual-lock control with 2 relays (max 30 VDC 2 A) plus 12 VDC 500 mA lock power output for simple door strike or maglock wiring
IP65 outdoor rating with IEEE 802.3af PoE and H.264 H.265 MJPEG streaming for efficient network video intercom performance
Modular KD8 system main unit with one-call physical button surface or flush mounting and scalable capacity up to 2000 users 6000 cards 500 indoor stations and 16 sub door stations
