> >>GARLAND UFTPL6AHFGY305 CAT6A U/FTP 23AWG LSZH SOLID 305M REEL LIGHT GREY
New GARLAND UFTPL6AHFGY305 CAT6A U/FTP 23AWG LSZH SOLID 305M REEL LIGHT GREY View larger

GARLAND

GARLAND UFTPL6AHFGY305 CAT6A U/FTP 23AWG LSZH SOLID 305M REEL LIGHT GREY

MADUFTPL6AHFGY305

UFTPL6AHFGY305

New product

MADUFTPL6AHFGY305 Cat6A U-FTP LSZH Solid LAN Cable 23AWG-305m-Reel Light Grey

The MADUFTPL6AHFGY305 is a high-quality Category 6A U/FTP LAN cable designed for indoor structured cabling and high-speed Ethernet networks. Supplied as a 305m reel, it uses solid 23AWG PACW copper conductors with foam PE insulation, four individually foil screened pairs, and a shared 26AWG tinned copper drain wire to ensure strong EMI rejection, low crosstalk, and reliable 10GBase-T performance up to 500MHz.

Ideal for horizontal and fixed wiring in offices data rooms and commercial fit-outs, it features a low smoke zero halogen LSZH sheath in light grey with a nominal overall diameter of 7.4mm for clean compliant installs where fire safety and reduced toxic fumes are critical. It complies with ANSI/TIA-568-D.2 ISO/IEC 11801-2 AS/NZS 3080 AS/CA S-008 and AS 1049 and meets key IEC fire performance tests, offering dependable installation handling with 110N recommended pulling tension, 50mm minimum bend radius, and an operating range of -20 to +70C.

Key Features

  • Cat6A U-FTP performance supports 10GBase-T and Ethernet applications to 500MHz for high speed network links
  • Solid 23AWG PACW conductors 1-0.56mm with foam PE insulation deliver stable transmission and low resistance

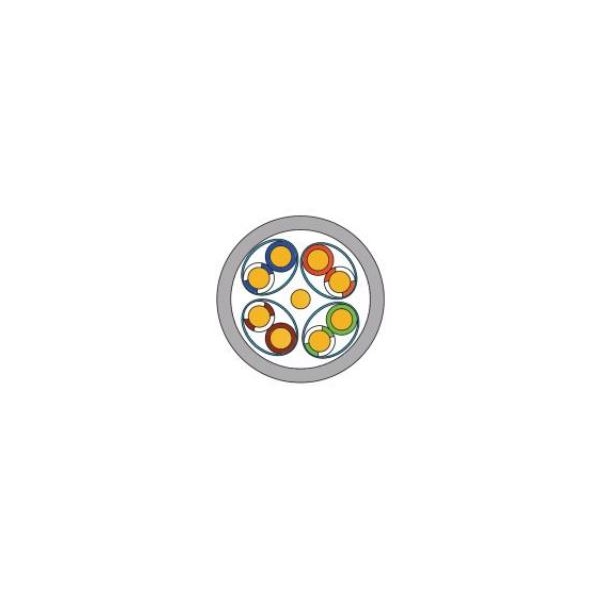

  • Individually foil screened pairs with Al-PET laminate and 26AWG tinned copper drain wire improve noise immunity
  • LSZH jacket with IEC flame smoke and halogen performance and AS-NZS 4507 RHE-1 rating for safer indoor cabling
  • 305m reel light grey sheath optimised for structured cabling runs horizontal pathways and fixed wiring installs
  • COLOR GREY
  • PRODUCT TYPE CAT 6A CABLE
