> >>GARLAND UTPL6JFBK305 CAT6 UTP 23AWG SOLID CORE JEL FILLED UNSCREENED PE 305M REEL BLACK
GARLAND UTPL6JFBK305 CAT6 UTP 23AWG SOLID CORE JEL FILLED UNSCREENED PE 305M REEL BLACK View larger

GARLAND

GARLAND UTPL6JFBK305 CAT6 UTP 23AWG SOLID CORE JEL FILLED UNSCREENED PE 305M REEL BLACK

MADUTPL6JFBK305

UTPL6JFBK305

New product

UTPL6JFBK305 Garland Cat 6 UTP Gel-Filled Outdoor LAN Cable - Black 305 m

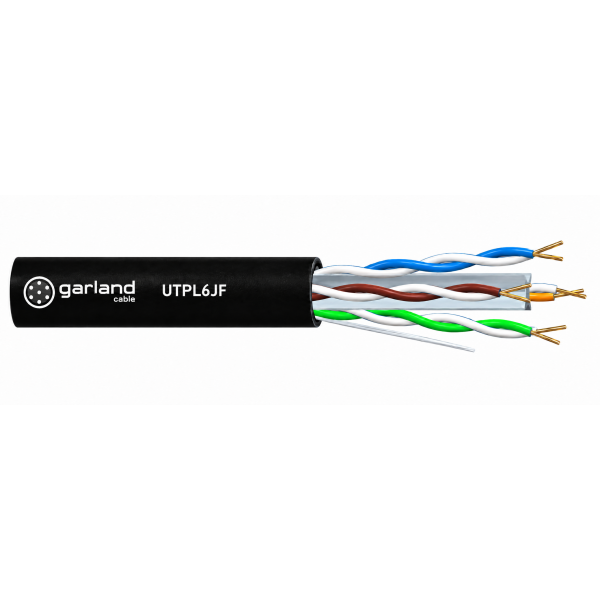

The Garland UTPL6JFBK305 is a 305 m Cat 6 unshielded twisted-pair LAN cable containing four pairs of solid 23 AWG PACW conductors. Its construction incorporates PE insulation, a cross-web separator and a water-resistant flooding compound.

The black UV-stabilised PE sheath is specified for outdoor, water-blocked and underground communication-network applications requiring speeds up to Gigabit Ethernet. Applicable standards listed for the cable include UL 444, TIA/EIA-568-C.2, AS/CA S008 and IEC 60794-1-2-F5B.

Key Features

  • Solid 23 AWG conductors with a 0.255 mm² conductor area
  • Cross-web separator maintains separation between the four twisted pairs
  • Blue green orange and brown colour-coded pairs support conductor identification
  • Electrical characteristics specified across frequencies from 1 to 250 MHz
  • Operating temperature range from -25°C to 70°C
  • Colour Black
  • Warranty 12 Months
  • Brand GARLAND
  • Cable Type CAT6
  • UTP/STP UTP
  • Size 23AWG
  • Single Core SINGLE CORE
  • Twisted TWISTED
  • Solid/Stranded SOLID
  • Cable Filing JEL FILLED
  • Screen Type UNSCREENED
  • Sheath PE
  • Cable Length (m) 305
  • Storage Type REEL
  • Cable Colors WHITE-BLUE/ WHITE-ORANGE/ WHITE-GREEN/ WHITE-BROWN
