> >>HIKVISION DS-K2704X(P) 4 DOOR ACCESS CONTROLLER POE+ RS-485 WEB CONFIG 221.6Hx131.5Wx50.5D (MM) WHITE

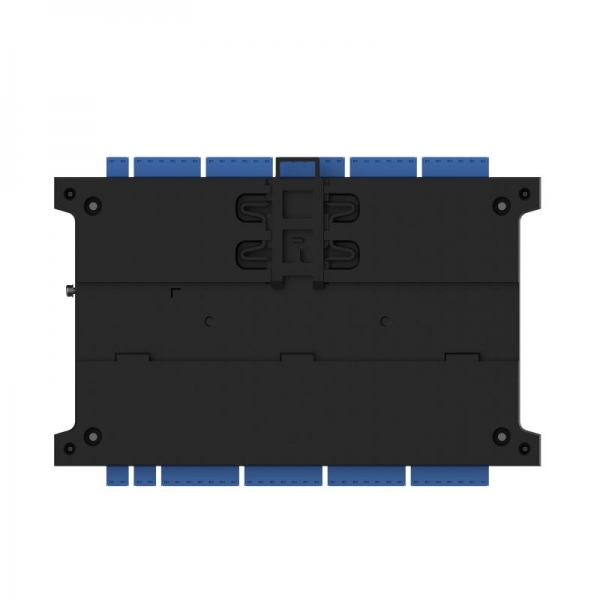

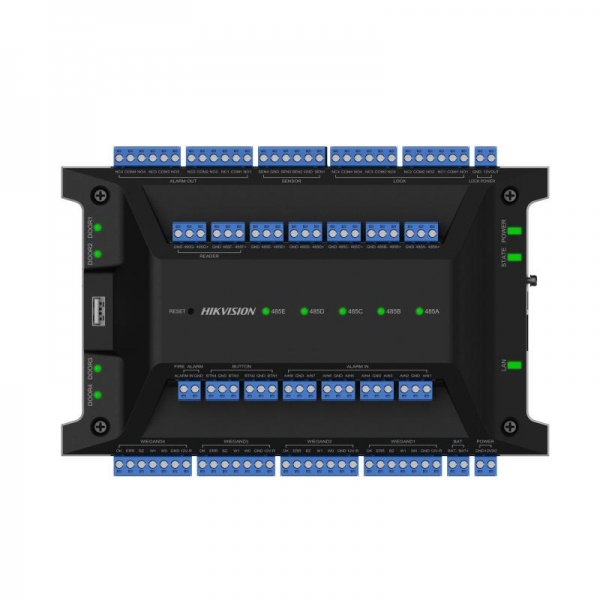

DS-K2704X(P) ACCESS CONTROLLER View larger

HIKVISION

HIKVISION DS-K2704X(P) 4 DOOR ACCESS CONTROLLER POE+ RS-485 WEB CONFIG 221.6Hx131.5Wx50.5D (MM) WHITE

HIKDS-K2704X-P

DS-K2704X(P) 302920545

New product

HIKVISION DS-K2704X(P) 4 DOOR ACCESS CONTROLLER POE+ RS-485 WEB CONFIG 221.6Hx131.5Wx50.5D (MM) WHITE

More details

HIKDS-K2704X-P DS-K2704X(P) Access Controller 4-door-221.6×131.5×50.5mm

The HIKDS-K2704X-P is a high-quality PoE access controller designed for scalable door management. Measuring 221.6×131.5×50.5 mm in a wall-mounted enclosure, it features 4-door control, five downstream RS-485 ports with redundant wiring, and web-based configuration to ensure communication stability and simplified deployment.

Ideal for subways, airports, banks, and large industry projects, it complies with OSDP and IEEE 802.3at PoE standards and offers multi-door interlocking, anti-passback, backup battery charging/discharging, and status indicators, making it suitable for critical infrastructure and enterprise security systems.

Key Features

  • 4-door control extendable to up to 128 doors via up to 62 DS-K2M002X access modules
  • Five downstream RS-485 ports with redundant-wiring design for stable communication
  • Web-based configuration management—no PC software required
  • Supports multi-door interlocking and anti-passback for advanced access workflows
  • Backup battery charging/discharging and status indicators for power and system health monitoring
  • COLOR WHITE
  • PRODUCT TYPE 4 DOOR ACCESS CONTROLLER
