> >>ROSSLARE AC-225IP-BA 2-READER IP ACCESS CONTROLLER TCP/IP 10/100 ETHERNET AXTRAXNG 12VDC TYPE I PLUG POWER CAB

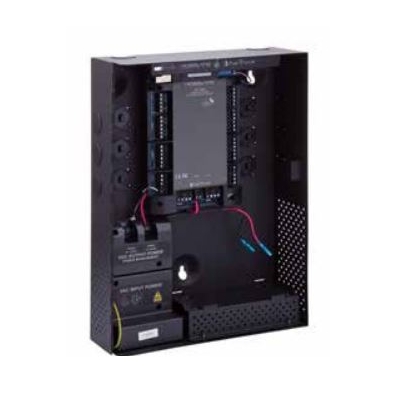

New ROSSLARE AC-225IP-BA 2-READER IP ACCESS CONTROLLER TCP/IP 10/100 ETHERNET AXTRAXNG 12VDC TYPE I PLUG POWER CAB View larger

ROSSLARE

ROSSLARE AC-225IP-BA 2-READER IP ACCESS CONTROLLER TCP/IP 10/100 ETHERNET AXTRAXNG 12VDC TYPE I PLUG POWER CAB

ROSAC-225IP-BA

AC-225IP-BA

New product

ROSAC-225IP-BA Rosslare AC-225IP-BA 2-Reader IP Access Controller TCP IP 10 100 Ethernet Wiegand 26-64 Bit 4IN 4OUT 12VDC - Type I Plug

The ROSAC-225IP-BA is a high-quality networked access control panel designed for enterprise and commercial single-door and multi-door applications. Measuring 193 x 136.5 x 39 mm, it features dual Wiegand 26–64 bit reader support, 12 VDC operation, and built-in TCP IP 10 100 Ethernet for fast, reliable IP connectivity.

Ideal for facilities using AxTraxNG software, it complies with CE and RoHS and offers 30,000 credential capacity, 20,000-event offline logging, and supervised inputs for enhanced safety and auditability—making it suitable for offices, campuses, healthcare, and institutional environments.

Key Features

  • 2 reader ports 12 V 300 mA each with Wiegand 26–64 bit for IN OUT control
  • Industrial-grade 12 VDC power and 4 fully programmable 5 A relay outputs rated 5 A at 30 VDC
  • Real-time clock with super-cap holds time during power loss plus anti-passback interlock and automation links
  • AxTraxNG-ready TCP IP 10 100 Ethernet RS-232 and RS-485 with CE and RoHS compliance
  • Supplied with Type I plug power cable for convenient installation
  • COLOR BLACK
  • PRODUCT TYPE ACCESS CONTROL
