> >>HIKVISION DS-PM1-I8O2-H AX HYBRID PRO SPEED-X INPUT EXPANDER 8-ZONE WHITE

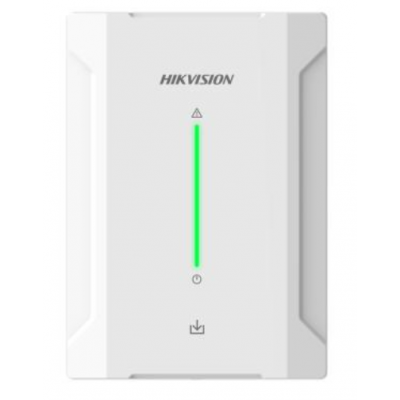

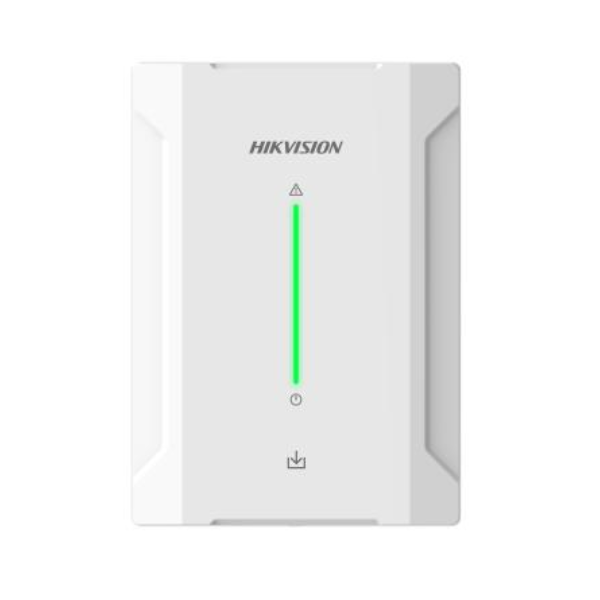

AX HYBRID PRO SPEED X INPUT EXPANDER View larger

HIKVISION

HIKVISION DS-PM1-I8O2-H AX HYBRID PRO SPEED-X INPUT EXPANDER 8-ZONE WHITE

HIKDS-PM1-I8O2-H

DS-PM1-I8O2-H

New product

HIKVISION DS-PM1-I8O2-H AX HYBRID PRO SPEED-X INPUT EXPANDER 8-ZONE WHITE

More details

HIKDS-PM1-I8O2-H AX Hybrid Pro Speed X Input Expander 8-Zone

The HIKDS-PM1-I8O2-H is a high-quality wired input expander for AX Hybrid Pro control panels, providing 8 onboard wired zones and 2 collector outputs. It communicates with the control panel via Speed-X bus with a maximum cable distance of 900 m and supports cascading to another expander for extended installations. Featuring 3EOL connection (1KΩ alarm, 1KΩ tamper, 2.2KΩ fault) and support for zone alarm, tamper, masking, fault, and short detection, it ensures versatile integration of multiple wired devices.

Ideal for small to medium applications such as villas, shops, offices, and hotels, it offers a 9–12 VDC power output for wired detectors, front and rear tamper protection, and LED indicators for power and fault status, making it a reliable choice for expanding wired security capacity.

Key Features

  • 8 onboard wired zones with 3EOL connection support
  • 2 collector outputs for relay module integration
  • Speed-X bus communication up to 900 m, expandable via cascade
  • Front and rear tamper protection with LED status indicators
  • 9–12 VDC power output for external detectors
  • COLOR WHITE
  • PRODUCT TYPE INPUT EXPANDER
