> >>HIKVISION DS-PM1-O4H-H SPEED-X OUTPUT EXPANDER 4-WAY POWER RELAY 16A WHITE

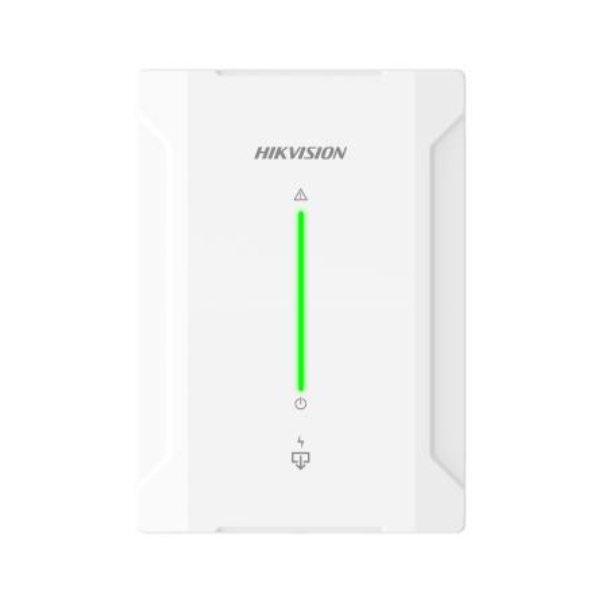

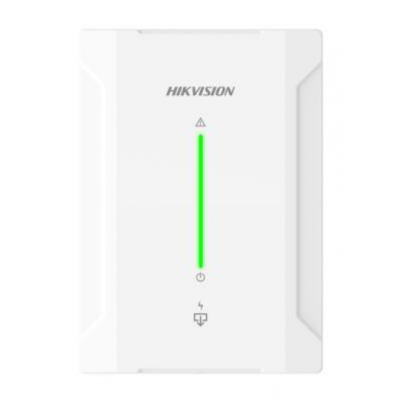

AX HYBRID PRO SPEED-X OUTPUT EXPANDER(POWER RELAY) View larger

HIKVISION

HIKVISION DS-PM1-O4H-H SPEED-X OUTPUT EXPANDER 4-WAY POWER RELAY 16A WHITE

HIKDS-PM1-O4H-H

DS-PM1-O4H-H

New product

HIKVISION DS-PM1-O4H-H SPEED-X OUTPUT EXPANDER 4-WAY POWER RELAY 16A WHITE

More details

HIKDS-PM1-O4H-H AX Hybrid Pro Speed X Output Expander 4-Way Power Relay

The HIKDS-PM1-O4H-H is a high-quality wired 4-way power relay expander designed for the AX Hybrid Pro control panel, enabling high-capacity electrical switching via Speed-X communication. Each relay supports up to 16 A at 100–240 VAC, making it suitable for controlling heavy-load devices. Featuring 1 uplink and 1 downlink Speed-X port, it allows cascading for expanded output control. The compact unit measures 110 × 155 × 32.5 mm, includes LED indicators for power and fault, and offers front/rear tamper protection for secure installation.

Ideal for residential, commercial, and industrial automation applications, it operates on 9–24 VDC, supports TTL serial communication, and delivers reliable performance with plastic housing and robust operating temperature tolerance from -10 °C to 40 °C.

Key Features

  • 4 onboard power relays rated up to 16 A at 100–240 VAC
  • Speed-X bus communication with uplink/downlink cascade support
  • LED indicators for power and fault status
  • Front and rear tamper protection with plastic housing
  • 9–24 VDC operation with 210 mA max current draw
  • COLOR WHITE
  • PRODUCT TYPE RELAY BOARD
