FSH VE1260R VE1260 ELECTRIC DROPBOLT ROUND EDGE STAINLESS STEEL MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 35KG PRE-LOAD
FSHVE1260R
VE1260R
New product
Drop Bolt

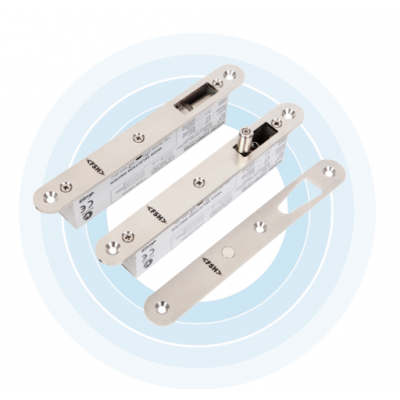

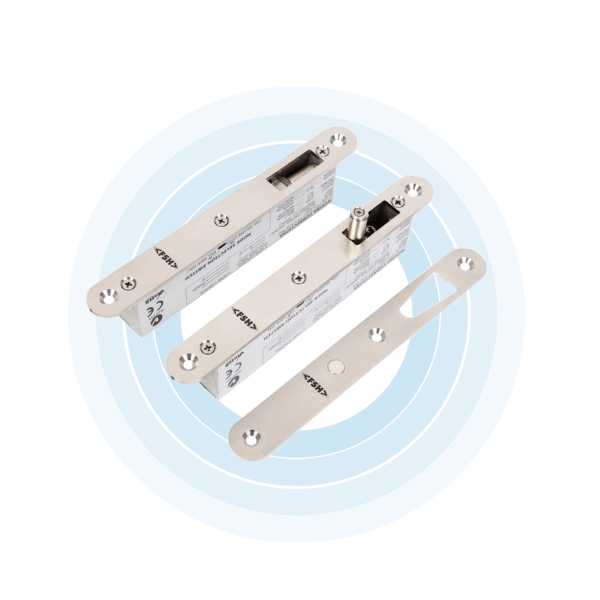

VE1260R Monitored Round-Edge Motorised Drop Bolt - Satin Stainless Steel
The FSH VE1260R is a monitored motorised drop bolt with a round-edge faceplate and satin stainless steel finish. Its mortice-mounted mechanism provides holding strength of up to 1000 kg, operates from 11-30 V DC and allows Power to Lock or Power to Open operation to be selected in the field.
The lock can be mounted vertically in the door frame or horizontally in the header, while its symmetrical deadbolt supports 180-degree swing-through doors. The VE1260 Series is fire rated for up to 4 hours in accordance with AS 1905.1:2015 and conforms to S3 security and D3 durability under AS 4145.2:1993.
Key Features
- High-torque drive releases against up to 35 kg of preload or side load when operated in 3-wire mode
- Independent lock and door status sensors provide detailed feedback to connected access-control systems
- Low sleep-mode current reduces ongoing power demand after each locking or unlocking cycle
- Round-edge format provides a purpose-shaped option for compatible mortice preparations
- Testing to 400000 operating cycles and five-year warranty coverage support long-term deployment
- Certifications Up to 4 Hour Fire Rated
- Colour STAINLESS STEEL
- Holding Strength Up to 1000kg
- Voltage Multi Voltage 11-30VDC
- Warranty 60 Months
- Brand FSH
- Unit Dimensions (mm) 210H x 25W x 41.5D
- Series VE1260
- Power 11-30VDC
- Mounting MORTISE MOUNT
- Device Type DROPBOLT
- Elec/Mech ELECTRIC
- Backset/Lip ROUND EDGE
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- Holding Force 1000KG
- PTO/PTL PTO/PTL FIELD INTERCHANGEABLE
- Fire Rating 4 HOUR FIRE RATING
- Pre-load 35KG
