FSH VE1260S VE1260 ELECTRIC DROPBOLT SQUARE EDGE STAINLESS STEEL MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 35KG PRE-LOAD
FSHVE1260S
VE1260S
New product
Drop Bolt - Square Edge

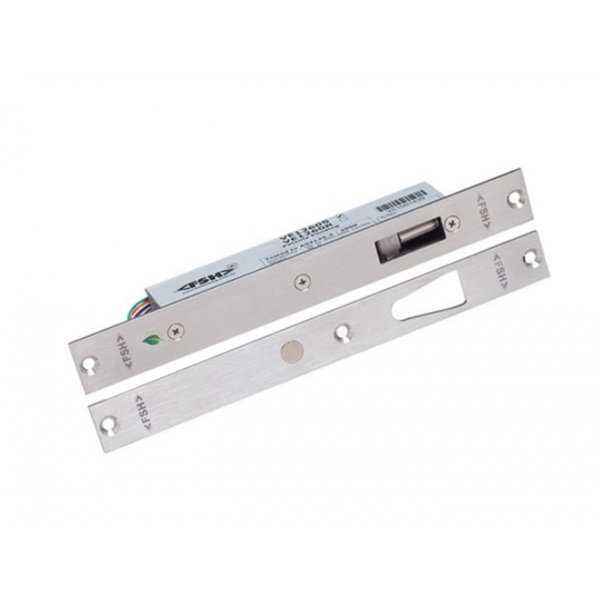

VE1260S Monitored Square-Edge Motorised Drop Bolt - Satin Stainless Steel
The FSH VE1260S is a square-edge mortice-mounted drop bolt with a high-torque motor drive and satin stainless steel finish. It provides holding strength of up to 1000 kg, releases against up to 35 kg of preload or side load in 3-wire mode, and operates from an 11-30 V DC supply.
Designed for monitored access-control applications, the VE1260S can be installed vertically in the door frame or horizontally in the header. The VE1260 Series is fire rated for up to 4 hours in accordance with AS 1905.1:2015 and conforms to S3 security and D3 durability under AS 4145.2:1993.
Key Features
- Field-selectable PTO or PTL operation allows installers to configure the required locking logic on site
- Separate lock and door status feedback helps connected systems confirm both bolt state and door position
- Low sleep-mode current reduces ongoing power demand after each operating cycle
- Square-edge retrofit format can suit the PADDE/TRIMEC ES8000 drop-bolt footprint on upgrade projects
- Flexible mounting and a symmetrical deadbolt support 180-degree swing-through door arrangements
- Certifications Up to 4 Hour Fire Rated
- Colour STAINLESS STEEL
- Holding Strength Up to 1000kg
- Voltage Multi Voltage 12-30VDC
- Warranty 60 Months
- Brand FSH
- Unit Dimensions (mm) 210H x 25W x 41.5D
- Series VE1260
- Power 11-30VDC
- Mounting MORTISE MOUNT
- Device Type DROPBOLT
- Elec/Mech ELECTRIC
- Backset/Lip SQUARE EDGE
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- Holding Force 1000KG
- PTO/PTL PTO/PTL FIELD INTERCHANGEABLE
- Fire Rating 4 HOUR FIRE RATING
- Pre-load 35KG
FSHVE1260S_fds_1
