> >>>>>BOSCH NDS-5703-F360LE FLEXIDOME PANORAMIC 5100I IR 6MP IP CAMERA DOME 360 MIC IR 20M IP66 WHITE

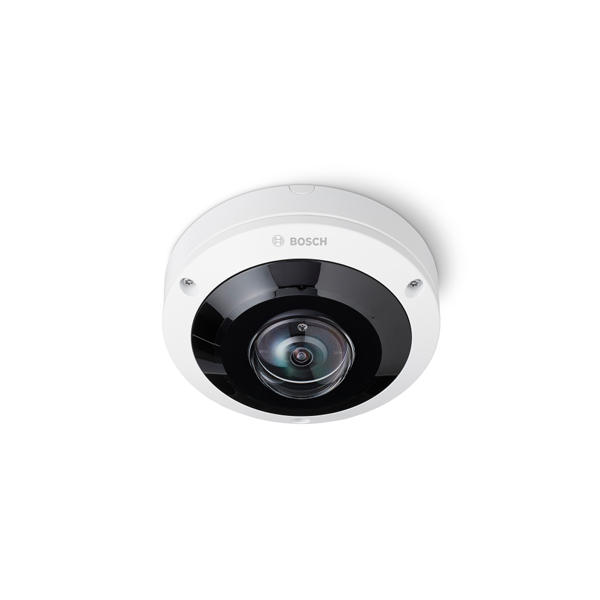

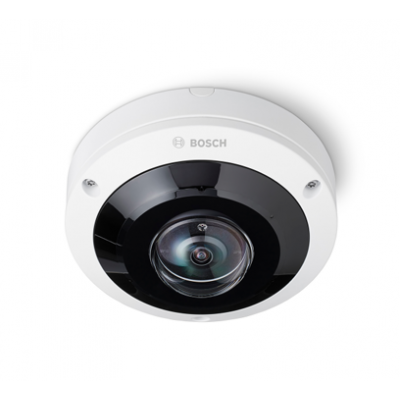

BOSCH NDS-5703-F360LE FLEXIDOME PANORAMIC 5100I IR 6MP IP CAMERA DOME 360 MIC IR 20M IP66 WHITE View larger

BOSCH

BOSCH NDS-5703-F360LE FLEXIDOME PANORAMIC 5100I IR 6MP IP CAMERA DOME 360 MIC IR 20M IP66 WHITE

BOSNDS-5703-F360LE

NDS-5703-F360LE

New product

BOSCH NDS-5703-F360LE FLEXIDOME panoramic 5100i IR IP Dome Camera 6MP-360deg-Mic-IR-20m-IP66-IK10-White

The NDS-5703-F360LE is a high-quality Bosch FLEXIDOME panoramic 5100i IR 6MP IP dome camera designed for indoor and outdoor 360-degree surveillance with no blind spots and reliable all-weather performance. Measuring 148mm diameter x 70mm height, it uses a 1.155mm fixed-focus stereographic lens to deliver a full image circle at 2112 x 2112 (4.5MP effective) with smooth real-time 30fps video, protected by an IP66 and IK10-rated aluminum housing with a dehumidifying membrane, waterproof connection area, and a clear UV-blocking polycarbonate bubble with anti-scratch coating in white RAL9003.

Ideal for retail, schools, warehouses, transport areas, and building perimeters, it combines High Dynamic Range (120dB WDR) with integrated 850nm 360-degree IR up to 20m and five controllable IR zones to prevent IR saturation and improve night-time visibility. The camera supports edge or client-side dewarping with multiple view modes including panoramic, quad, corridor, and E-PTZ, plus micro HDMI output up to 1080p for local display. Built-in Intelligent Video Analytics and Camera Trainer enhance situational awareness, while an integrated 3-microphone MEMS array enables Intelligent Audio Analytics with sound-event detection options. With H.265 and H.264 multi-stream streaming, ROI, microSD edge recording with 5s pre-alarm, PoE with optional 24VAC or 12VDC redundant power capability, and Secure Element TPM-grade security with RSA4096 and TLS encryption, it delivers secure, bandwidth-efficient panoramic coverage for modern IP CCTV and VMS platforms.

Key Features

  • 360-degree 6MP panoramic IP dome with stereographic lens and 2112 x 2112 full image circle (4.5MP effective) at up to 30fps
  • Integrated 360-degree IR to 20m with 850nm LED array and five controllable IR zones plus 120dB WDR for balanced day and night imaging
  • Edge or client-side dewarping with multi-channel streams and view modes including full panoramic double panoramic quad corridor and E-PTZ
  • Built-in Intelligent Video Analytics plus Camera Trainer and 3 digital MEMS microphone array for Intelligent Audio Analytics with sound-event detection
  • IP66 IK10 rugged housing with micro HDMI 1080p output PoE and optional 24VAC or 12VDC redundancy microSD edge recording and TPM RSA4096 TLS security
  • COLOR WHITE
  • PRODUCT TYPE CAMERA
