BOSCH NDS-5704-F360LE FLEXIDOME panoramic 5100i IR IP Dome Camera 12MP-360deg-IR-20m-IP66-IK10

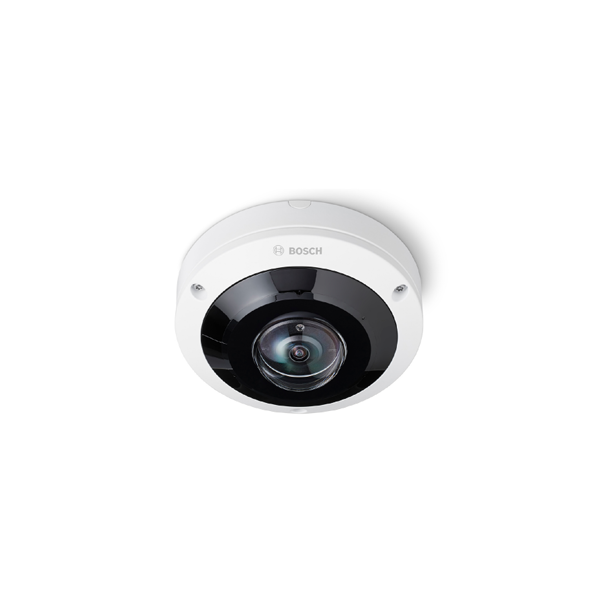

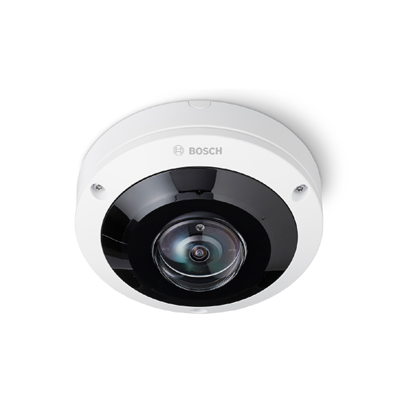

The NDS-5704-F360LE is a high-quality Bosch FLEXIDOME panoramic 5100i IR 12MP IP dome camera designed for indoor and outdoor 360-degree surveillance with no blind spots and exceptional scene detail. Measuring 148mm diameter x 70mm height, it uses a 1.26mm fixed-focus stereographic lens with an effective 3008 x 3008 (9MP) full image circle and 30 fps performance, housed in an IP66 and IK10-rated aluminum enclosure with a clear polycarbonate bubble featuring anti-scratch and anti-reflective coatings for all-weather vandal-resistant protection.

Ideal for wide-area coverage in retail, campuses, transport hubs, warehouses, and building perimeters, it combines 120dB HDR with integrated 850nm 360-degree IR up to 20m and five controllable IR zones to minimize IR saturation and optimize night visibility. It supports edge or client-side dewarping with multiple view modes, HDMI output up to 1080p for local monitors, H.265 and H.264 multi-streaming with ROI and multi-channel edge dewarping, and advanced analytics including IVA Pro Buildings, IVA Pro Perimeter, Camera Trainer, and Intelligent Audio Analytics via a 3-microphone MEMS array. With PoE (IEEE 802.3af and 802.3at Type 1 Class 3) plus optional 24VAC or 12VDC and redundant power capability, microSD edge recording, and Secure Element TPM-grade cybersecurity with TLS and AES encryption, it delivers secure, high-performance panoramic surveillance for modern IP CCTV and VMS deployments.

Key Features

  • 12MP 360-degree panoramic IP dome with stereographic lens and effective 3008 x 3008 (9MP) full image circle at up to 30 fps
  • Integrated 360-degree IR to 20m with 850nm high-efficiency LED array and five controllable IR zones plus 120dB HDR for all lighting conditions
  • Edge or client-side dewarping with multiple view modes and multi-channel streams including full circle dewarped view and E-PTZ
  • Built-in IVA Pro Buildings IVA Pro Perimeter Camera Trainer and Intelligent Audio Analytics with 3 digital MEMS microphone array
  • IP66 IK10 NEMA 4X housing with PoE and optional 24VAC or 12VDC redundant power HDMI output and Secure Element TPM RSA4096 TLS security
  • COLOR WHITE
  • PRODUCT TYPE CAMERA
