PT-Series Mini Tower Video Server with 8TB


New product

PT-Series Mini Tower Video Server with 8TB

More details

Wavestore PT-Series server/storage NVRs deliver a recording, management and control solution for small and medium size security and video surveillance projects.

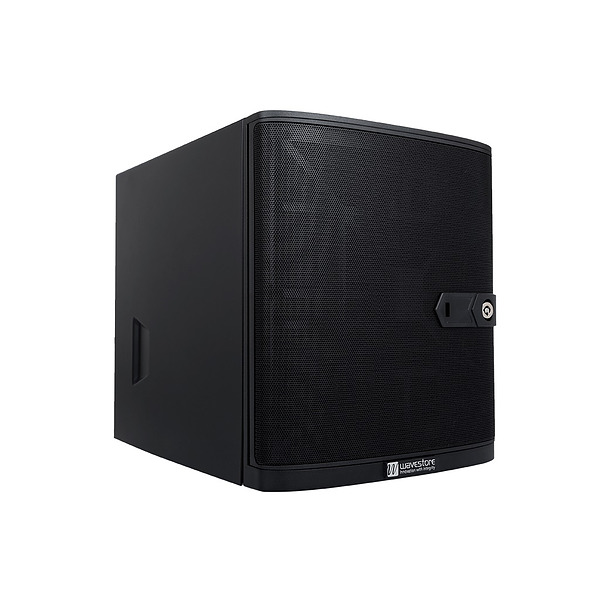

Typically, at least 48 network cameras can be connected to each NVR, which are supplied preinstalled with Wavestore’s Video Management Software (VMS). Housed in a compact mini tower case, suitable for desktop or shelf mounting, PT-Series NVRs can accommodate up to 4 x 3.5” hot swappable hard drives to provide up to 40TB of storage. This can deliver 45 days continuous real time recording from 48 Full HD cameras in a typical installation.

WaveView client software can be run straight from the NVR to monitor live or recorded video, making it an ideal single box solution. The PT-Series has a throughput of up to 300Mbits/sec and comes with dual network interfaces to segregate incoming and outgoing network traffic. The ports can be bonded to provide fault-tolerance for perfect performance at all times

PT-Series NVRs are compatible with all four levels of Wavestore’s VMS: Base, Premium, Enterprise and Ultimate, which offer a broad range of capabilities and features to ensure the right solution for any given application.

Channel licenses sold separately located in the accessories tab.


  • Highly secure VMS embedded into the Linux Operating System (OS)
  • Up to 4096bit encryption with comprehensive cyber security package provided as standard
  • Fully ONVIF conformant and truly open platform
  • Compatible with the world’s leading camera brands and video formats
  • Compatible with a wide range of camera technology including UHD, 4K, HD, 360° fisheye, panoramic, thermal, HD over analogue and analogue
  • Comprehensive third party integration capability across Intelligent Video Analytics, Access Control, Intruder Detection and other technologies
  • Channels up to 48
  • Colour Black
  • Country of Origin United Kingdom
  • Dimensions (H x W x D) 240 x 210 x 280mm
  • Operating Temperature 5°C to 40°C
  • Storage 8TB
  • Warranty 3 Years
  • Weight 5.7kg with 1 HDD fitted
