Single Port PoE++ Injector - 95 Watt


New product

Single Port PoE++ Injector - 95 Watt

More details

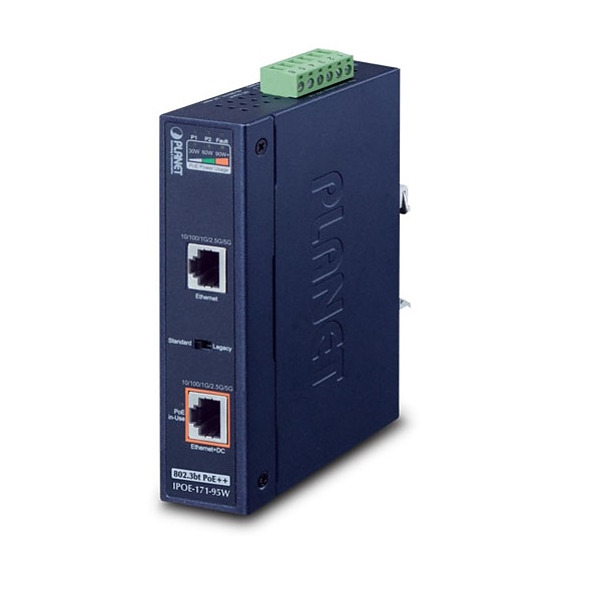

    PLANET IPOE-171-95W is a Single Port, Industrial 802.3bt Power over Ethernet Injector allowing up to 95 watts of power output over Ethernet cables. It is also allows 100M/1G/2.5G/5G Ethernet to handle extremely large amounts of data transmission.

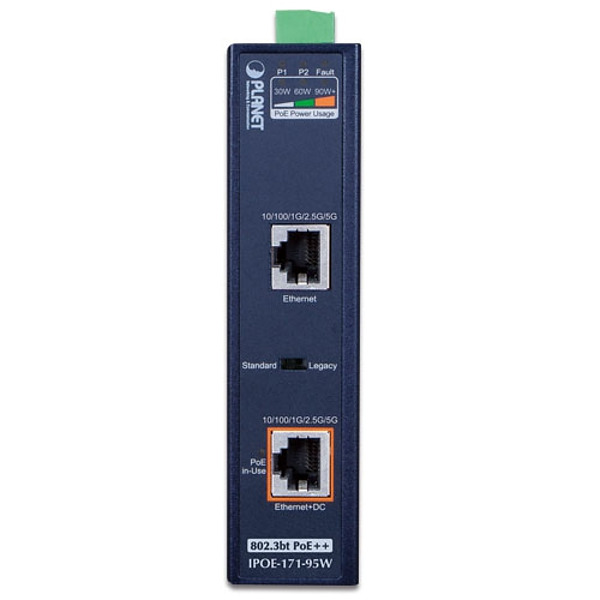

    • 2 Multi-Gigabit RJ45 interfaces
      – 1-port Data + Power output
      – 1-port Data input

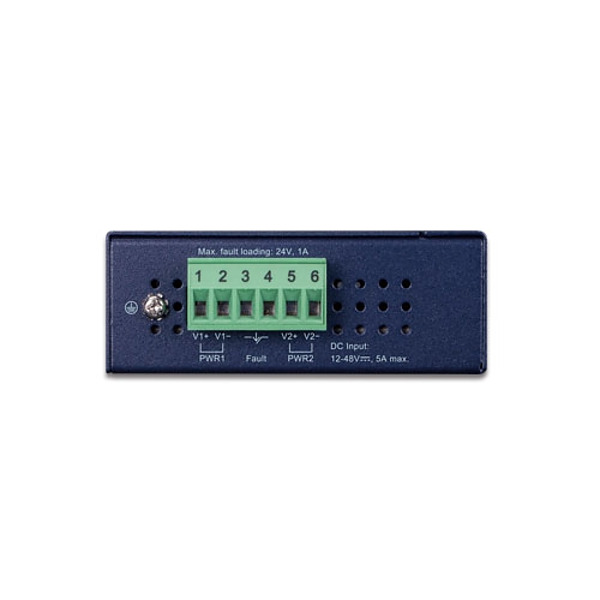

    • 1 terminal block for master and slave power input. (Power Range: 12 ~ 48V DC redundant power)
    • 1 PoE mode (standard/legacy and force) DIP switch
    • Power over Ethernet
    • Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
    • Supports PoE power up to 95 watts for PoE port
    • Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
    • Monitors the status of the total PoE usage in real time
    • Remote power feeding up to 100m
    • IP30 slim type metal case
    • LED indicators for Power LED , PoE-in-Use LED and PoE Usage LED
    • Industrial Case and Installation
    • Solid wall mount or DIN-rail mount installation
    • Supports 6KV DC Ethernet ESD protection
    • -40 to 75 degrees C operating temperature
    • Dimensions (H x W x D) 87.8 x 32 x 135mm
    • IP Rating IP30
    • Material Metal
    • Operating Temperature -40 ~ 75 degrees C
    • Voltage DC +/-12 ~ +/-48V, 5A max.
    • Warranty 3 Years
    • Weight 470g
