> >DALLAS DELTA SENTRYDCOM1BV SENTRY 4-WIRE 1-BUTTON AUDIO DOOR STATION SILVER S/S VERTICAL 9-20VDC DRY CONTACT LOCK OUTPUT
New DALLAS DELTA SENTRYDCOM1BV SENTRY 4-WIRE 1-BUTTON AUDIO DOOR STATION SILVER S/S VERTICAL 9-20VDC DRY CONTACT LOCK OUTPUT View larger

DALLAS DELTA

DALLAS DELTA SENTRYDCOM1BV SENTRY 4-WIRE 1-BUTTON AUDIO DOOR STATION SILVER S/S VERTICAL 9-20VDC DRY CONTACT LOCK OUTPUT

DDLSENTRYDCOM1BV

SENTRYDCOM1BV

New product

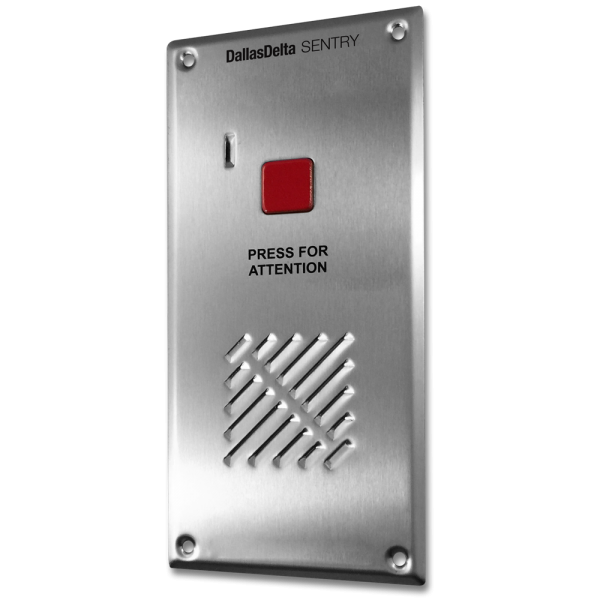

SENTRYDCOM1BV Dallas Delta Sentry Externally Powered 1 Button Vertical PSTN Audio Doorstation

The Dallas Delta Sentry is a one-button vertical PSTN audio doorstation for hands-free communication and remote door or gate release. This externally powered model accepts 9-20 V DC and provides a non-inductive voltage-free relay output rated at 1 A at 50 V DC or 30 V AC.

The unit has a 304 stainless steel panel measuring 130 mm wide x 270 mm high x 45 mm deep, with a vandal-resistant metal call button. It is designed for residential and commercial entry points and operates from -10°C to +60°C.

Key Features

  • Interactive voice prompts support programming and setup
  • Programmable automatic dialling from the call button
  • Storage for up to 12 primary telephone numbers
  • Two alternative numbers can be assigned to each primary number
  • Push-to-talk mode is available for noisy environments
  • Colour Silver
  • Material Stainless Steel
  • Warranty 12 Months
  • WDR NO CAMERA/WITHOUT WDR
  • Brand DALLAS DELTA
  • Unit Dimensions (mm) 270H x 130W x 45D
  • Series SENTRY
  • Output LOCK OUTPUT(DRY CONTACT)
  • Power 9-20VDC
  • Technology 4-WIRE
  • Mounting SURFACE/RECESSED MOUNT
  • Modular / All In One VERTICAL
  • Device Type 1 BUTTON AUDIO DOOR STATION
  • Solution RESIDENTIAL/COMMERCIAL
  • Display Size NO DISPLAY
  • Display/Button Type MECHANICAL BUTTON
  • Camera Resolution NO CAMERA
  • IP System Compression NON IP DEVICE
  • Mounting Box REQUIRED MOUNTING BOX
