> >DALLAS DELTA GUARDMK2VOIP1BV GUARD IP/VOIP 1-BUTTON AUDIO DOOR STATION SILVER S/S SURFACE MOUNTED POE 9-50VDC
New DALLAS DELTA GUARDMK2VOIP1BV GUARD IP/VOIP 1-BUTTON AUDIO DOOR STATION SILVER S/S SURFACE MOUNTED POE 9-50VDC View larger

DALLAS DELTA

DALLAS DELTA GUARDMK2VOIP1BV GUARD IP/VOIP 1-BUTTON AUDIO DOOR STATION SILVER S/S SURFACE MOUNTED POE 9-50VDC

DDLGUARDMK2VOIP1BV

GUARDMK2VOIP1BV

New product

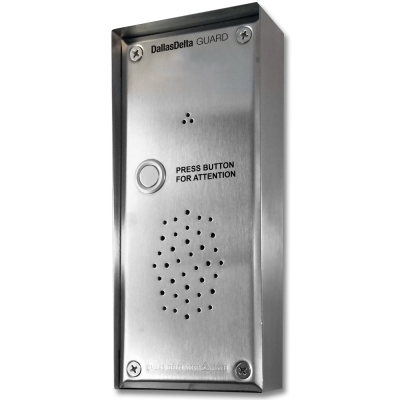

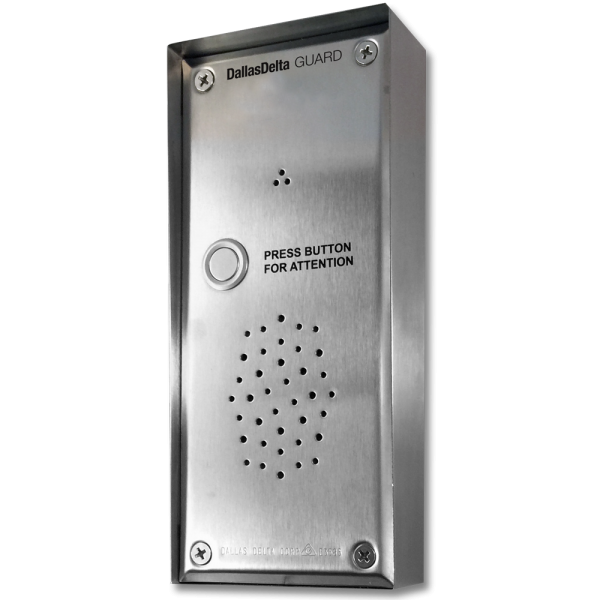

GUARDMK2VOIP1BV Guard MKII Single-Button Vertical VoIP Audio Door Station

The Dallas Delta GUARDMK2VOIP1BV is a single-button vertical VoIP audio door station for surface-mounted entry communication. It provides hands-free operation, SIP-based communication over 10/100 Ethernet, multi-codec selection and network-connected web-browser programming.

The unit has a stainless steel push button and a vandal-resistant, weather-shielding stainless steel enclosure measuring 225 mm high x 100 mm wide x 45 mm deep. Power is supplied by IEEE 802.3af PoE or a 9-50 V DC external supply at 300 mA, while the onboard voltage-free relay provides remote door or gate release control.

Key Features

  • SIP support enables connection to compatible modern PBX systems including CCM and Asterisk PBX
  • Web-browser programming provides network-based access to configuration options
  • Remote diagnostic testing supports off-site system checks
  • Automatic disconnection and a conversation timer provide controlled call handling
  • Firmware upgrade capability and non-volatile memory support device maintenance and retained configuration
  • Colour Silver
  • Warranty 12 Months
  • Brand DALLAS DELTA
  • Unit Dimensions (mm) 225H x 100W x 45D
  • Series GUARD SERIES
  • Output VOLTAGE-FREE RELAY OUTPUT
  • Power POE / PSU 9–50VDC; 300MA
  • Technology IP/VOIP
  • Mounting SURFACE MOUNT
  • Modular / All In One VERTICAL
  • Device Type AUDIO ONLY DOOR STATION
  • Solution RESIDENTIAL/COMMERCIAL
  • Display/Button Type STAINLESS STEEL PUSH BUTTON
  • IP System Compression MULTI CODEC SELECTION
  • Additional Camera Input NO ADDITIONAL CAMERA INPUT
  • Features 1 HANDS-FREE OPERATION
  • Features 2 REMOTE DOOR-RELEASE ACTIVATION
  • Max SD Card Supported NOT SUPPORT SD CARD
  • Mounting Box STAINLESS STEEL ENCLOSURE INCLUDED
  • LAN Port Entry CAT5 / 10/100 BASE ETHERNET
