> >>>>PATRIOT WB-DC12-8A 13.5VDC 8A WALL MOUNT DC UPS 16X 1.85A OUTPUTS 1X 12V 9AH BATTERY WHITE 235Hx362Wx92D (MM)
New PATRIOT WB-DC12-8A 13.5VDC 8A WALL MOUNT DC UPS 16X 1.85A OUTPUTS 1X 12V 9AH BATTERY WHITE 235Hx362Wx92D (MM) View larger

PATRIOT

PATRIOT WB-DC12-8A 13.5VDC 8A WALL MOUNT DC UPS 16X 1.85A OUTPUTS 1X 12V 9AH BATTERY WHITE 235Hx362Wx92D (MM)

PSSWB-DC12-8A

WB-DC12-8A

New product

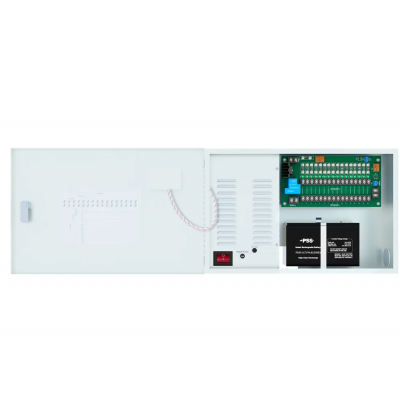

PSSWB-DC12-8A Patriot Wall Mount DC UPS 13.5VDC 8A 16 Outputs - 1x 12V 9Ah Battery 235Hx362Wx92D mm

The PSSWB-DC12-8A is a high-quality wall mount DC uninterruptible power supply designed for security, CCTV, access control, and critical low-voltage systems. Measuring 235Hx362Wx92D mm, it features a robust lockable metal enclosure and a 16-way fused terminal strip to ensure reliable multi-channel distribution and clean 13.5VDC power.

Ideal for powering cameras, door controllers, alarms, and networking peripherals, it complies with typical 12V DC security power conventions and offers LED status indication, mains-fail and low-battery contacts, and low-voltage cut-off for safer unattended operation, making it suitable for commercial, industrial, and enterprise installations.

Key Features

  • 13.5VDC 8A 108W with 16 x 1.85A fused outputs for organized multi-device power (~35 min runtime at 8A typical)
  • Durable lockable white wall cabinet for tamper resistance and longevity
  • LED indicators on all outputs plus user-adjustable voltage for quick diagnostics and setup
  • Mains fail and low battery relay contacts with short-circuit, overload, and low-voltage cut-off protection
  • Supplied with 1 x 12V 9Ah battery pre-installed for fast UPS deployment in security applications
  • COLOR BEIGE
  • PRODUCT TYPE POWER SUPPLY
