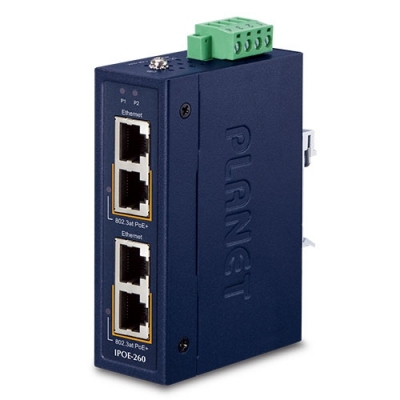

PLANET IPOE-260-12V INDUSTRIAL 2-PORT GIGABIT POE+ INJECTOR HUB 10/100/1000T IEEE 802.3AT 72W 12~56VDC

Product Code: PLNIPOE-260-12V

Supplier SKU: IPOE-260-12V

Condition: New product

More info
Specifications
Download

IPOE-260-12V Industrial 2-Port Gigabit PoE Plus Injector Hub 10-100-1000T - 72W 12-56VDC

The IPOE-260-12V is a high-quality industrial 2-port Gigabit PoE+ injector hub designed for powering and networking IEEE 802.3af/at devices such as IP cameras, wireless access points, and VoIP phones in harsh environments. Featuring four 10/100/1000BASE-T RJ45 interfaces with 2 data inputs and 2 data plus power outputs, it delivers up to 36W per PoE port and a total PoE budget of up to 72W, making it ideal for high-power PoE deployments over standard Cat5e-Cat6 cabling.

Ideal for industrial networks, transport systems, outdoor cabinets, campuses, and security surveillance installs, it supports a wide 12-56V DC redundant power input via a removable 4-pin terminal block with reverse polarity protection and 12-54V to 54V PoE power boost for flexible power sourcing. Built in an IP30 slim metal case with DIN-rail, wall-mount, or side wall-mount options, it operates from -40 to 75°C and provides 6KV ESD and 6KV EFT protection for reliable, long-distance PoE up to 100m.

Key Features

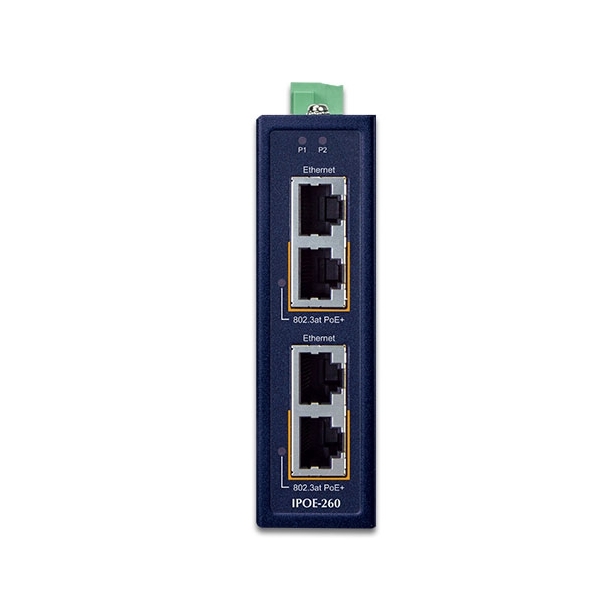

Industrial mid-span IEEE 802.3at PoE+ injector with 2x data plus power outputs and 2x data inputs on 10-100-1000T RJ45
Up to 36W per PoE port with auto-detection of IEEE 802.3af/at powered devices and PoE splitter compatibility

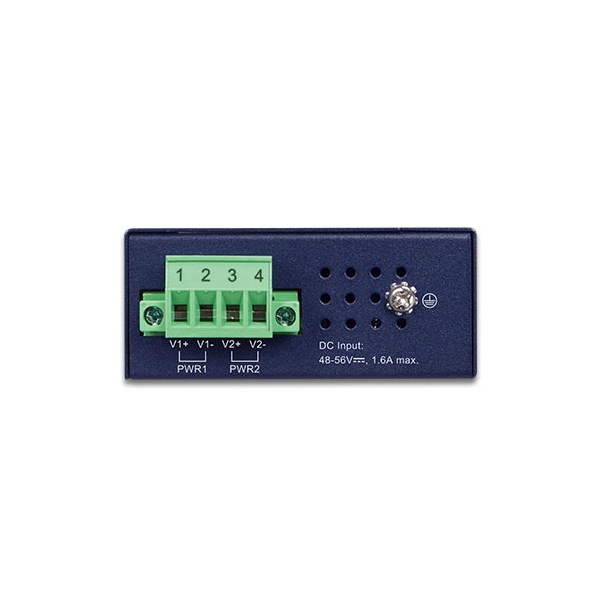

72W maximum PoE budget with wide 12-56V DC redundant input and reverse polarity protection via removable terminal block
IP30 rugged slim metal housing with DIN-rail wall-mount or side wall-mount installation for space-saving cabinets
-40 to 75C operating temperature plus 6KV ESD and 6KV EFT protection for industrial and outdoor deployments
