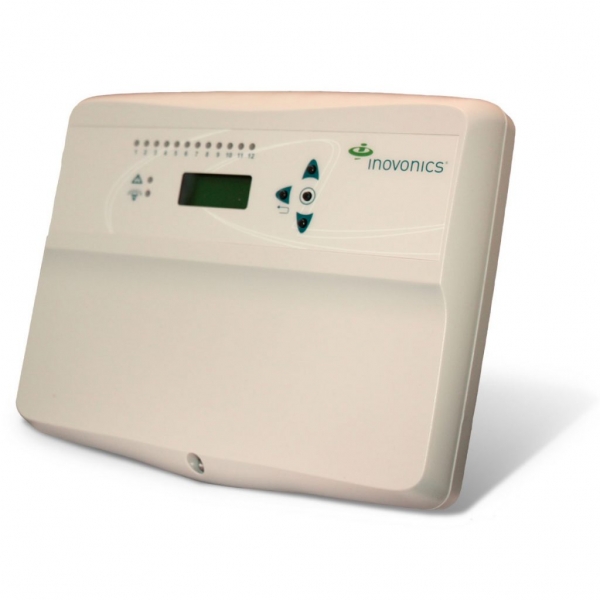

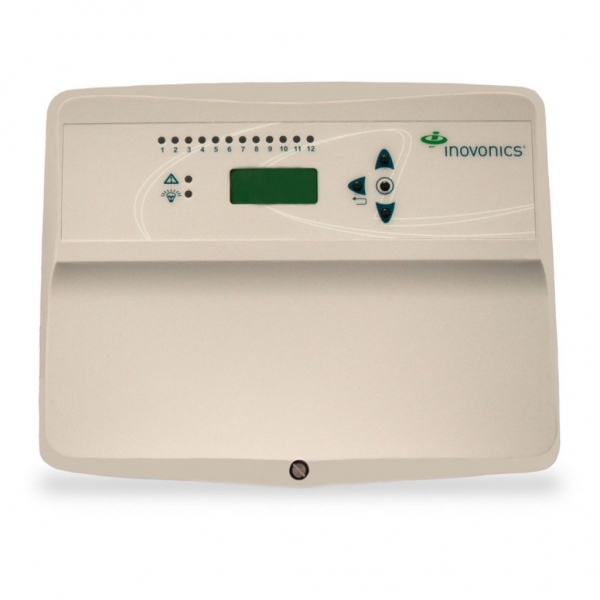

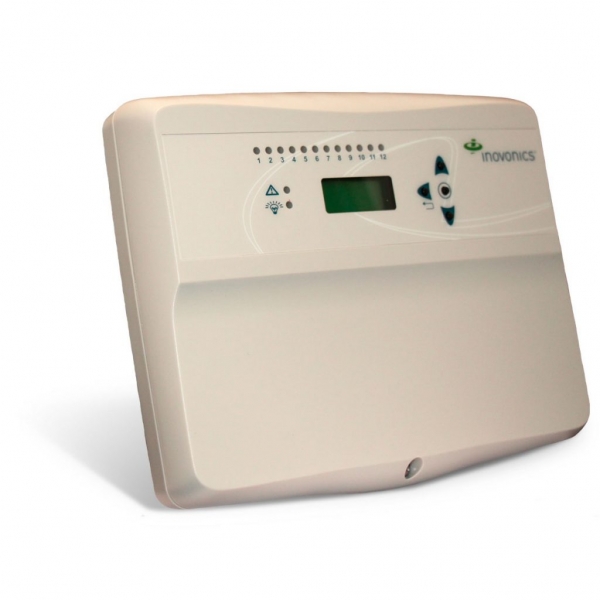

> >>INOVONICS EN4232MR 32 ZONE MULTI-CONDITION WIRELESS RECEIVER 12X RELAY OUTPUTS 902-928MHZ 11-14VDC 178HX222WX4
INOVONICS EN4232MR 32 ZONE MULTI-CONDITION WIRELESS RECEIVER 12X RELAY OUTPUTS 902-928MHZ 11-14VDC 178HX222WX4 View larger

INOVONICS

INOVONICS EN4232MR 32 ZONE MULTI-CONDITION WIRELESS RECEIVER 12X RELAY OUTPUTS 902-928MHZ 11-14VDC 178HX222WX4

INVEN4232MR

EN4232MR

New product

INVEN4232MR Inovonics EN4232MR 32 Zone Multi Condition Wireless Receiver 12 Relay Outputs - 902 928MHz 11 14VDC

The INVEN4232MR is a high-quality wireless security receiver designed for integrating EchoStream devices with hardwired alarm panels or stand-alone systems. Measuring 178 × 222 × 41 mm, it features 902–928 MHz frequency hopping spread spectrum radio and internal antennas with case tamper and jam detection to ensure robust supervision, secure operation, and dependable long-range performance.

Ideal for commercial intrusion systems, healthcare and campus monitoring, and multi-tenant sites, it complies with FCC Industry Canada UL and AS NZS 4268 requirements and offers simple Form C relay integration with selectable output modes, making it suitable for professional installations across North America Australia and New Zealand.

Key Features

  • Programs and supervises up to 32 transmitters with two line display event log and signal strength readout
  • Eleven Form C alarm relays plus one fault relay rated 1A 28VDC 0.5A 30VAC for flexible panel integration
  • Selectable follower latching momentary or toggle outputs to match system logic
  • Security features include case tamper protection RF jam detection and internal antennas
  • Power 11–14 VDC 500 mA operating 0 to 60 C 90 percent RH non condensing
  • COLOR WHITE
  • PRODUCT TYPE RECEIVER
