> >>ELSEMA PCR43304RE 4CH RECEIVER RELAY OUTPUT IP66 CASE
New ELSEMA PCR43304RE 4CH RECEIVER RELAY OUTPUT IP66 CASE View larger

ELSEMA

ELSEMA PCR43304RE 4CH RECEIVER RELAY OUTPUT IP66 CASE

ELSPCR43304RE

PCR43304RE

New product

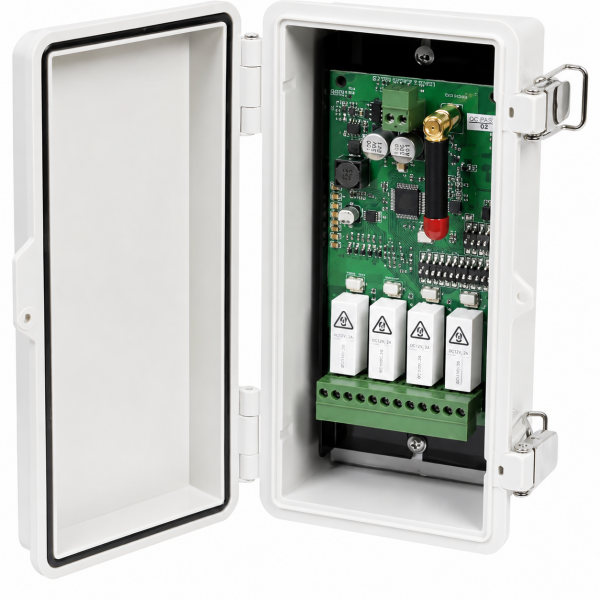

PCR43304RE Elsema PentaCode 433 MHz 4 Channel Relay Output Receiver - IP66 Case

PCR43304RE is an Elsema PentaCode Series 433 MHz 4-channel relay output receiver in an IP66 rated enclosed case for wireless automation switching. The PentaCode platform uses frequency hopping spread spectrum across the 433.100 to 434.700 MHz band and supports dual coding through an onboard 12-way Elsema code switch or encrypted 17 billion code combinations.

It is suited to automatic gates, garage doors and roller shutters where the receiver needs protected housing and clean wireless integration. The enclosed receiver format uses a built-in PCB gain antenna, reducing the need for external antenna work, and the family brochure lists receiver memory for unlimited transmitters with operating range up to 200 metres depending on building structure and receiver antenna.

Key Features

  • 4-channel receiver format gives installers flexible switching control for automatic gate, garage-door and roller-shutter applications
  • IP66 rated enclosed case suits receiver placement where weather-resistant housing is required
  • Dual coding lets sites use familiar 12-way Elsema code-switch setup or encrypted PentaCode operation
  • Frequency hopping spread spectrum across five operating frequencies supports more dependable 433 MHz wireless signalling
  • Built-in PCB gain antenna helps keep enclosed receiver installations tidy without external antenna work
  • COLOR WHITE
  • PRODUCT TYPE RECEIVER - 4 CHANNEL
