Ethernet Communication Module View larger

Ethernet Communication Module


New product

Ethernet Communication Module

More details

RAC Security Services Perth 1300 360 504
Bluestar Security & Cabling Ballajura 0423 190 918
Armcor Welshpool 9472 8180
Security Solutions WA Kingsley 0439 166 539
Protect West Security Wangara 1300 300 855
Coast to Coast Alarms Baldivis 1300 667 728

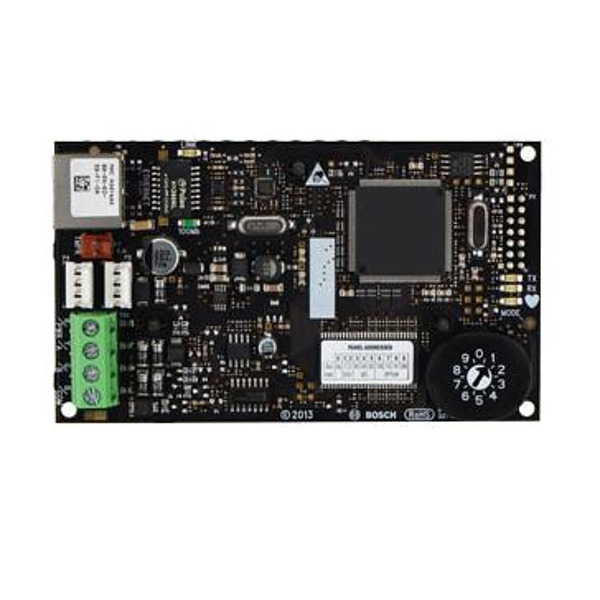

The B426-M Conettix Ethernet Communication Module is a four-wire powered SDI, SDI2, or Option bus device that provides two way communication with compatible control panels over IPv4 or IPv6 Ethernet networks.

Typical applications include:

• Reporting and path supervision to a Conettix Communications Receiver/Gateway.

• Remote administration and control with Remote Programming Software (RPS) or our Remote Security Control application for handheld devices.

• Connection to building automation and integration applications.

The B426 is built for a wide variety of secure commercial and industrial applications. Flexible end to end path supervision, AES encryption, and antisubstitution features make B426 desirable for high security and fire monitoring applications. It is capable as a stand-alone path or it can be used in conjunction with another communication technology.


  • Full two-way IP event reporting with remote control panel programming support
  • 10/100 Base-T Ethernet communication for IPv6 and IPv4 networks
  • NIST-FIPS197 Certified for 128-bit to 256-bit AES Encrypted Line Security
  • Plug and Play installation, including UPnP service to enable remote programming behind firewalls
  • Advanced configuration by browser or RPS with compatible Bosch control panels
