> >>FSH FEM4300M-HV SLIMLINE MAG LOCK MONITORED LED INDICATOR FAIL SAFE (PTL) 280KG 12/24VDC SILVER

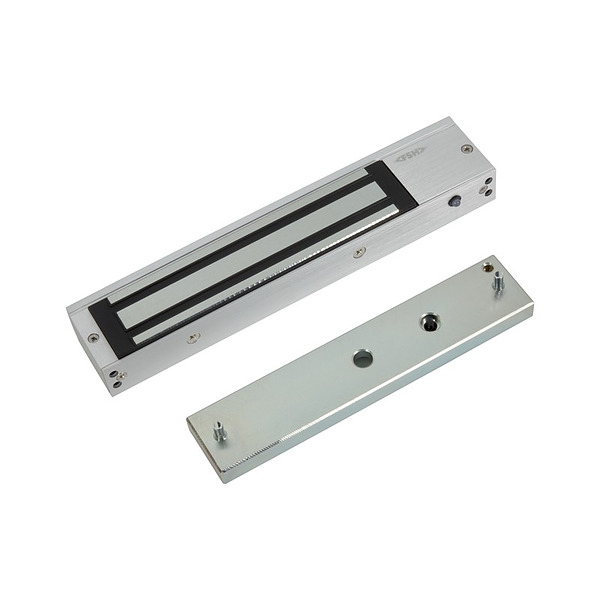

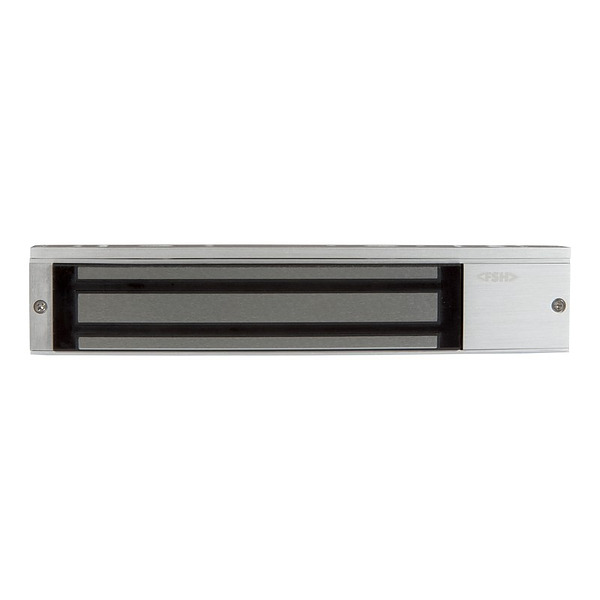

Electromagnetic Lock - Single Monitored View larger

FSH

FSH FEM4300M-HV SLIMLINE MAG LOCK MONITORED LED INDICATOR FAIL SAFE (PTL) 280KG 12/24VDC SILVER

FSHFEM4300M

FEM4300M-HV

New product

Electromagnetic Lock - Single Monitored

More details

FEM4300M-HV ELECTROMAGNETIC LOCK - SILVER

The FEM4300M-HV is a reliable electromagnetic lock offering up to 280kg holding strength, designed for commercial applications requiring secure door locking solutions. It features dual voltage operation (12/24VDC) with field selectable settings and built-in varistor surge protection for enhanced durability. The lock produces no residual magnetism when powered off, extending its life and improving user experience.

This monitored version includes a red-green bicolour LED to clearly indicate door and lock status. It complies with Australian and New Zealand standards, including a 2-hour fire rating according to AS1905.1:2015. The FEM4300M-HV is suitable for integration with various credential readers, making it a versatile choice for access control systems.

Key Features

  • Holding strength up to 280kg for secure locking
  • Dual voltage 12/24VDC field selectable
  • Door and lock status monitoring with LED indicator
  • Built-in varistor surge protection for reliability
  • 5 year warranty and 2-hour fire rating compliance
  • Colour Silver
  • Compliance 2-hour fire rated
  • Dimensions (H x W x D) 268 x 48 x 25mm
  • Holding Strength Up to 280kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 5 Years
  • COLOR SILVER
  • PRODUCT TYPE ELECTRIC STRIKE
