> >>FSH FES112MOD CUSTODIAL ELECTRIC STRIKE MONITORED FAIL SECURE 1000KG 12-30VDC SILVER
FSH HIGH SECURITY ELECTRIC CUSTODIAL STRIKE STAINLESS STEEL MONITORED DSS 1000KG HOLDING FORCE FAIL SECURE (PT View larger

FSH

FSH FES112MOD CUSTODIAL ELECTRIC STRIKE MONITORED FAIL SECURE 1000KG 12-30VDC SILVER

FSHFES112MOD

FES112MOD

New product

FSH FES112MOD CUSTODIAL ELECTRIC STRIKE MONITORED FAIL SECURE 1000KG 12-30VDC SILVER

More details

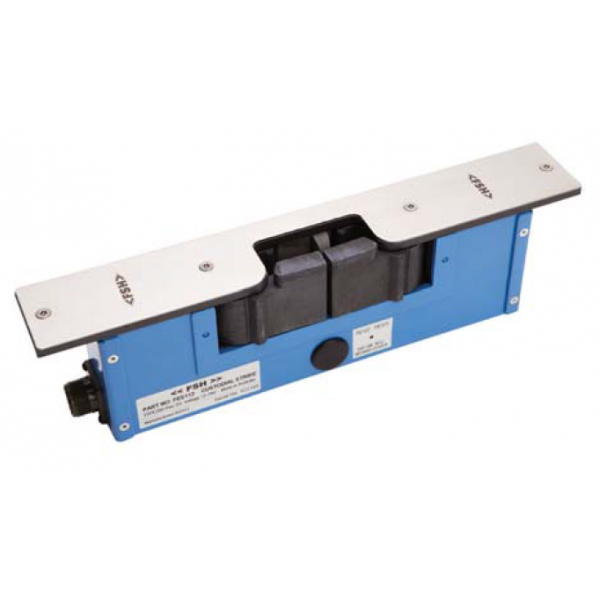

FES112MOD High Security Electric Custodial Strike with Monitoring

The FES112MOD is a high-security electric strike developed for demanding custodial and correctional applications where robust holding force and comprehensive monitoring are required. Designed to operate in conjunction with heavy-duty double-throw deadlocks, it offers a holding force exceeding 1000 kg. Its stainless steel faceplate and hardened steel jaws ensure resilience, while built-in monitoring functions cover strike jaws, lock position, door position, and cover plate removal. With multi-voltage operation (12–30VDC), it supports both new and retrofit installations in high-risk security environments

Equipped with Smart Electronics and a selectable change-over switch (Series 2 or 3), the FES112MOD allows flexible deployment across access control systems. In Series 3 mode, the unit includes door position monitoring, preventing the lock from engaging unless the door is fully closed. Operating in fail-secure mode (Power to Open), it is tamper-resistant and rated for use between –20°C and +60°C, making it ideal for correctional facilities, detention centres, and other high-risk institutional settings

Key Features

  • Ultra high holding force exceeding 1000 kg for high-security applications
  • Full monitoring: strike jaws, lock position, door position, and anti-tamper
  • Multi-voltage support (12–30VDC) with low current draw (12VDC: 1.5A / 24VDC: 0.75A)
  • Smart Electronics with switchable Series 2/3 configurations for flexible installs
  • Fail-secure operation with hardened steel body and jaws (60 Rockwell)
  • COLOR SILVER
  • PRODUCT TYPE ELECTRIC STRIKE
